Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Community Media
Tial MV-R Wastegate 44mm Purple w/ All Springs (Part Number: )
Tial MV-R Wastegate 44mm Purple w/ All Springs
Universal
Read 3 Reviews | 2 Q&As
Part # MVRP
$414.20
msrp: $436.00

In stock! Ships same day
Universal part

Features & Product Details

RallySport Direct is proud to carry some of the best aftermarket turbocharged components brought toy ou by Tial.

Here, you are looking at the Tial 44mm MVR External Wastegate. The Tial 44 MVR is a very popular choice of external wastegate utilized by some of the world's fastest and powerful turbocharged vehicles. The 44 MVR supersedes the previous Tial V44 in design with new features to achieve your desired boost levels.

DETAILS:



  • Water cooling ports (not required to run) for those heavy-duty applications, three bottom pressure ports and two top ports for boost controllers like the AMS-1000.
  • High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
  • High-temperature silicone Nomex reinforced actuator diaphragm.
  • 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist "relaxing" at a temperature to 900F (483C).
  •  Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
  • All Stainless Steel hardware.
  • Mating weld flanges are 304L
  • Includes all of the springs so you can tune it to your cars needs without spending money on extra springs
  • Springs come pre-installed from  Tial  so you will want to verify the spring settings before installation
  • Purple finish
  •     BAR PSI SPRING COMBINATION 0.3 4.35 Red 0.4 5.80 Blue 0.5 7.25 Green + Red 0.6 8.70 Green + Blue 0.7 10.15 Black + Red 0.8 11.60 Black + Blue 0.9 13.05 Green + Red + Black 1.0 14.50 Green + Blue + Black 1.1 15.95 Yellow + Red + Black 1.2 17.40 Black + Blue + Yellow 1.3 18.85 Plain + White + Blue + Green 1.4 20.30 Plain + Black + Red + Yellow 1.5 21.75 Plain + Black + Blue + Yellow

    Specifications

    Brand: Tial
    Color: Purple
    Flange Size: 44mm
    Flange Type: V-Band
    Includes Hardware: Yes
    Includes Spring: Yes, All Springs
    Material: Stainless Steel / Aluminum
    Pressure Rating: 0.3-1.7 bar
    Type: External
    Water Cooled: Yes
    Mfgr. Warranty: Limited Lifetime Warranty
    Condition: New Product
    Return Policy:

    RallySport Guarantee - 30 Days


    Items that are covered under the RallySport Guarantee offer a 30 day no questions asked return policy.

    RallySport Guarantee items may be returned within 30 days of the original invoice date and must include all the original parts and contents for a refund.

    The RallySport Guarantee does not apply to products that have been modified, damaged, misused or abused. All returns require an RMA (Return Merchandise Authorization) Number, and freight charges are strictly non-refundable. For more information regarding our freight refund policy, please refer to our return policy page found HERE.
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    3 Reviews
    5 out of 5 Stars
    5 Stars
    (3)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Stars
    (0)
    Customer Photos and Videos

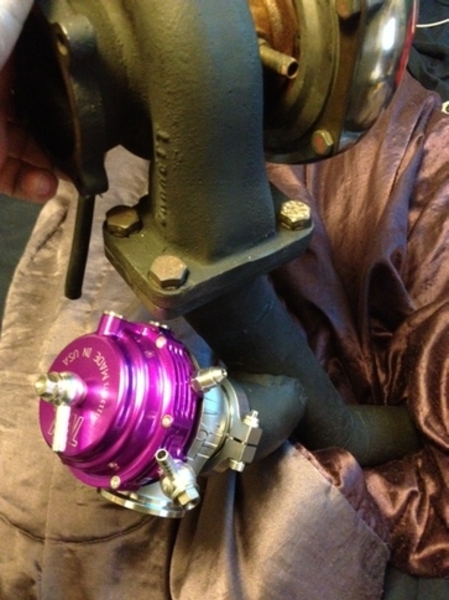

    Tial MV-R Wastegate 44mm Purple w/ All Springs ( Part Number: MVRP)
    WRX STI GRB 2008 4 years ago
    5out of 5stars

    got the tail 44mm for my turbo up pipe as i wanted to get a more steady and loonger spool and set up with a grimspeed up pipe. it work´s 110%

    Was this review helpful?
    ITS PURPLE! 5 years ago
    5out of 5stars

    installed this wastegate as part of my new engine build and i must say this thing is great! Tial products are always perfect and have never had a problem. sounds awesome and is a great way to control boost when at higher than stock levels

    Was this review helpful?
    3 of 3 people found the following review helpful
    Prince loves purple, so do I. 5 years ago
    5out of 5stars

    Ever since I was a child, I have been fascinated with the color purple. The conception of this enlightenment occurred after witnessing the movie, Purple Rain starring Prince. Ever since then the color purple has been always apart of my life. I even went to Weber State University because of the school colors. Me, and the revolution use to prance around campus challenging the rest of the flunkies to a game of basketball. Where we dominated the masses. We later would cool ourselves in the waters of Lake Minnentonka where we had a picnic of pancakes waiting for us. Of course the passion of purple applies to my love for cars. Purple wastegates add 10 horsepower in the fashion department, with that said I will also get a matching purple Tial blow off valve. Now you will have to excuse me while I relax to a glass of purple drank.

    Was this review helpful?

    QUESTIONS & ANSWERS

    • Q: 550whp  Henry's04FozzyXT9 months ago

      stage 4 iag block, forced performance red, iag fuel rails etc and tgv deletes shooting for a cool 550awhp. will the 44mm be overkill or just right for the higher boost set-up?( 8.5:1) compression
      • 0 of 0 people found the following answer helpful

        A:  It would depend on the turbo setup and how much boost you are pushing

        Devan M. @ RallySport Direct 9 months ago

        Was this answer helpful?
      • 0 of 0 people found the following answer helpful

        A:  Based on the flow rate FP published (they no longer offer the FP Red for the Subaru), the MV-R would provide plenty of flow at higher boost levels. But at that HP level, you could also use the MV-S with no problems either, as FP does use the MV-S with their "Red" series used in the EVO applications.

        TiAL @ Tial 9 months ago

        Was this answer helpful?
    • Q: Tial MV-R Wastegate 44mm Purple w/ All Springs  ggabemichael035292 years ago

      was wondering if this is the right product/fitment for the invidia catless downpipes
      • 0 of 0 people found the following answer helpful

        A:  This is a universal item. It's not confirmed to fit with any downpipe. If you have an Invidia downpipe this will not connect to it either. you will need to go EWG up pipe.

        Tyler A. @ RallySport Direct 2 years ago

        Was this answer helpful?

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
