GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
Community Media
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe (Part Number: )
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe
Subaru Models (inc. 2002-2014 WRX / 2004+ STI)
Read 6 Reviews | 14 Q&As
Part # 013002
$390.00

Only 3 left!

Features & Product Details

An External Wastegate (EWG) allows exhaust gases to be diverted prior to entering the turbo; thus creating a quicker turbo spool. GrimmSpeed's EWG has a larger diameter than the stock internal wastegate; this allows the exhaust gas to be released faster, which improves boost control, maintains maximum boost longer in the rpm range, and extends the life of the turbo. Moving the wastegate out of the turbo relieves the turbo from the massive amounts of turbulence that the stock internal wastegate creates.

The EWG Up-Pipe is built from 304 SS with thick 12mm 304 SS flanges that will not warp. The flanges have been CNC cut for perfect tolerances(no laser cutting here!). A flex section has been added; this will extend the life of the product(allows expansion/contraction of pipe without cracking) and will lead to less exhaust leaks. Users should expect gains in the 15-40hp range when tuned for the EWG set-up. Additionally, it will come ceramic coated in a black finish for extra protection against heat and corrosion.

Package Contents:
EWG Up Pipe
Dump Tube
5 Studs for Up Pipe
2 Bolts, Washers, & Nuts

This includes all the gaskets necessary for installation.

This uppipe is not suitable for RHD cars.

Specifications

Brand: GrimmSpeed
Gaskets Included: Yes
Includes Catalytic Converter: No
Installation Hardware Included: Yes
Piping Coating: Yes
Piping Flex Joint: Yes
Piping Material: 304 Stainless Steel
Mfgr. Warranty: Lifetime
Condition: New Product
Return Policy:

RallySport Guarantee - 30 Days


Items that are covered under the RallySport Guarantee offer a 30 day no questions asked return policy.

RallySport Guarantee items may be returned within 30 days of the original invoice date and must include all the original parts and contents for a refund.

The RallySport Guarantee does not apply to products that have been modified, damaged, misused or abused. All returns require an RMA (Return Merchandise Authorization) Number, and freight charges are strictly non-refundable. For more information regarding our freight refund policy, please refer to our return policy page found HERE.
RallySport Guarantee

PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

REVIEWS & CUSTOMER MEDIA

6 Reviews
4.8 out of 5 Stars
5 Stars
(5)
4 Stars
(1)
3 Stars
(0)
2 Stars
(0)
1 Stars
(0)

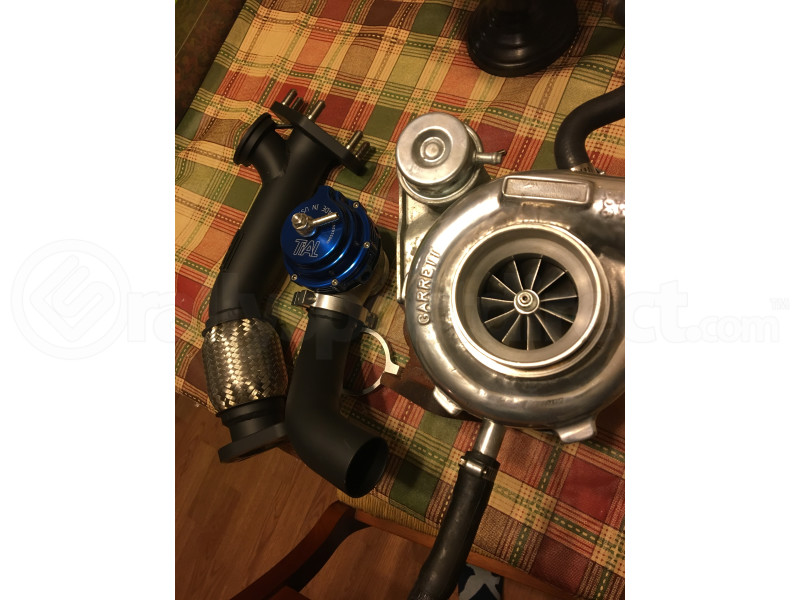

Customer Photos and Videos
GrimmSpeed Ceramic Coated 44/45mm External Wastegate Uppipe ( Part Number: 013002)
Awesome :D 2 years ago
Connor258
Defiantly the best up pipe out there! Everything looked great ecspecially the Cermanic coating. Fitment was perfect and was super easy to install (My motor was out so yeah) I would defiantly recommend the 44mm Ewg dump tube setup as well ;)

Was this review helpful?
Amazing quality from GS as always. 3 years ago
dombeezy
Every time i order a product from Grimmspeed i know what quality i am getting. This up pipe was no exception. Solid and smooth welds with thick piping. The ONLY complaint i have isn't about the product. When installing this up pipe with a 44MM waste gate on my 2015 STI the power steering lines were a bit of a pain to move the waste gate around while worrying about the stock down pipe not getting in the way of the dump tube. Since i kept my stock downpipes what i had to do was cut the heat shielding off and heat wrap it.

Was this review helpful?
A must get... 3 years ago
jdurrett
This uppipe is just awesome! The quality is superb and the fitment was great! I paired this with a Tial 44mm EWG and let just say im in love. Smiles every time i hit boost! Shipping was fast as always!

Was this review helpful?
Fitment issues 6 years ago
SLO MKIV
When we installed this we noticed the studs didn't line up with the turbo. We tried the stock Up-Pipe studs to no avail. At that point we took out one (1) of the studs and attached it to the turbo then fed the extra stud through the top to the bottom and tightened it up. It made a 5 minute job into a 2 hour job purely because the stud holes were either drilled in the wrong spot or drilled on an incorrect angle. Other than that the part is good quality and has been working fine for the last month. I would recommend this part to my friends.

Was this review helpful?
loving it 6 years ago
stimike
highly recommended. love the sound !!

Was this review helpful?

QUESTIONS & ANSWERS

  • Q: Fitment  eddiebor157133 years ago

    Will this fit a 2002 WRX?
    • 0 of 0 people found the following answer helpful

      A:  While this uppipe would likely bolt up to your car, we are unable to confirm fitment as it removes factory emissions equipment.

      Josh P. @ RallySport Direct 3 years ago

      Was this answer helpful?
  • Q: Down pipe and header figment.  wizardman2u4 years ago

    I have a 2013 Sti and was wondering if this up-pipe would work with the Turboxs downpipe and Agency Power unequal header?
    • 0 of 0 people found the following answer helpful

      A:  Yes, this uppipe will fit just fine with those components.

      guest56ad69792a8d256e198b66b5 @

      Was this answer helpful?
  • Q: downpipe and header fitment  smjfifa020094 years ago

    Can this 2 bolt version can fit perrin header and bellmouth downpipe? Or i need the 3 bolt one?
  • Q: uppipe  jsmo0th2803817084 years ago

    Will this uppipe bolt onto invidia equal length headers?
    • 0 of 0 people found the following answer helpful

      A:  This should bolt up to that header without any issues.

      guest56ad69792a8d256e198b66b5 @

      Was this answer helpful?
  • Q: Uppipe to wastegate  jztinicaza266114 years ago

    How the uppipe will hold the wastegate is it bolt on or do you need a clamp to hold the wastegate?
    • 0 of 0 people found the following answer helpful

      A:  The wastegate will attach to this up pipe using V-Band Clamps.

      Brady R. @ RallySport Direct 4 years ago

      Was this answer helpful?
    • 0 of 0 people found the following answer helpful

      A:  When you buy the actual wastegate it should come with all hardware necessary to mount it to the pipe. Mike

      GrimmSpeed

      Was this answer helpful?

This Part Fits

Subaru Impreza
2.5 GT Hatchback
2009 Subaru Impreza 2.5 GT Hatchback
2010 Subaru Impreza 2.5 GT Hatchback
2.5 GT Sedan
2009 Subaru Impreza 2.5 GT Sedan
2010 Subaru Impreza 2.5 GT Sedan
WRX
2006 Subaru Impreza WRX
2007 Subaru Impreza WRX
WRX Hatchback
2008 Subaru Impreza WRX Hatchback
2009 Subaru Impreza WRX Hatchback
2010 Subaru Impreza WRX Hatchback
2011 Subaru Impreza WRX Hatchback
2012 Subaru Impreza WRX Hatchback
2013 Subaru Impreza WRX Hatchback
2014 Subaru Impreza WRX Hatchback
WRX Limited
2006 Subaru Impreza WRX Limited
2007 Subaru Impreza WRX Limited
WRX Limited Hatchback
2010 Subaru Impreza WRX Limited Hatchback
2011 Subaru Impreza WRX Limited Hatchback
2012 Subaru Impreza WRX Limited Hatchback
2013 Subaru Impreza WRX Limited Hatchback
2014 Subaru Impreza WRX Limited Hatchback
WRX Limited Sedan
2010 Subaru Impreza WRX Limited Sedan
2011 Subaru Impreza WRX Limited Sedan
2012 Subaru Impreza WRX Limited Sedan
2013 Subaru Impreza WRX Limited Sedan
2014 Subaru Impreza WRX Limited Sedan
WRX Premium Hatchback
2010 Subaru Impreza WRX Premium Hatchback
2011 Subaru Impreza WRX Premium Hatchback
2012 Subaru Impreza WRX Premium Hatchback
2013 Subaru Impreza WRX Premium Hatchback
2014 Subaru Impreza WRX Premium Hatchback
WRX Premium Sedan
2010 Subaru Impreza WRX Premium Sedan
2011 Subaru Impreza WRX Premium Sedan
2012 Subaru Impreza WRX Premium Sedan
2013 Subaru Impreza WRX Premium Sedan
2014 Subaru Impreza WRX Premium Sedan
WRX STI
2004 Subaru Impreza WRX STI
2005 Subaru Impreza WRX STI
2006 Subaru Impreza WRX STI
2007 Subaru Impreza WRX STI
WRX STI Hatchback
2008 Subaru Impreza WRX STI Hatchback
2009 Subaru Impreza WRX STI Hatchback
2010 Subaru Impreza WRX STI Hatchback
2011 Subaru Impreza WRX STI Hatchback
2012 Subaru Impreza WRX STI Hatchback
2013 Subaru Impreza WRX STI Hatchback
2014 Subaru Impreza WRX STI Hatchback
WRX STI Limited
2007 Subaru Impreza WRX STI Limited
WRX STI Limited Hatchback
2011 Subaru Impreza WRX STI Limited Hatchback
2012 Subaru Impreza WRX STI Limited Hatchback
2013 Subaru Impreza WRX STI Limited Hatchback
2014 Subaru Impreza WRX STI Limited Hatchback
WRX STI Limited Sedan
2011 Subaru Impreza WRX STI Limited Sedan
2012 Subaru Impreza WRX STI Limited Sedan
2013 Subaru Impreza WRX STI Limited Sedan
2014 Subaru Impreza WRX STI Limited Sedan
WRX STI Sedan
2011 Subaru Impreza WRX STI Sedan
2012 Subaru Impreza WRX STI Sedan
2013 Subaru Impreza WRX STI Sedan
2014 Subaru Impreza WRX STI Sedan
WRX STI Special Edition Hatchback
2010 Subaru Impreza WRX STI Special Edition Hatchback
WRX Sedan
2008 Subaru Impreza WRX Sedan
2009 Subaru Impreza WRX Sedan
2010 Subaru Impreza WRX Sedan
2011 Subaru Impreza WRX Sedan
2012 Subaru Impreza WRX Sedan
2013 Subaru Impreza WRX Sedan
2014 Subaru Impreza WRX Sedan
WRX TR
2006 Subaru Impreza WRX TR
2007 Subaru Impreza WRX TR
