Vortech Supercharger Kit V-3 H67BC Air to Air IC Black Finish - Scion FR-S 2013-2016 / Subaru BRZ 2013+ / Toyota 86 2017+

MODEL # VOR 4TF218-014L
Manufacturer Part # 4TF218-014L

$6,377.99

24
hours
Only 1 left!
Qualifies for free shipping!


Buy as a package deal and save:
RallySport Direct Albino Rhino Project Car POWER Kit ( Part Number:RSD ARPCP)
RallySport Direct Albino Rhino Project Car POWER Kit
As low as $5,082.96
View Product

Description

The fun-to-drive car is back, and the FT86 platform is the most exciting thing to come along in years! However, most people believe there is one thing missing... more power!

With a legendary history of improved performance through efficient boost, the team of Engineers at Vortech have designed a kit that makes these great cars even more enjoyable to drive.

Design, detail and execution exceed OEM standards for a look you will be excited to show off at the car show or the track.

Boost your Scion FR-S/Subaru BRZ to the next level of performance with the new centrifugal supercharging system from Vortech.

Complete systems include a calibration upgrade and all necessary fuel components to boost your FR-S/BRZ to 294HP and 210 lb/ft torque with 9PSI at the factory redline. This includes a replacement MAP sensor and Ecutek programmer to re-flash the ECU with a safe, custom Vortech calibration for 91-octane fuel. Calibration for both manual and automatic vehicles is available and 50-State emissions legal under CARB E.O. D-213-34.

Included Components:

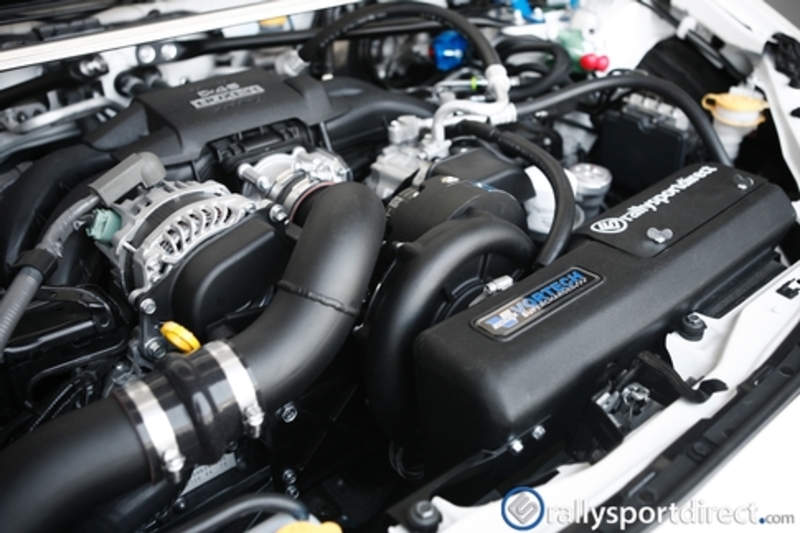

• Gear-driven V-3 H67B centrifugal supercharger, designed specifically for the FA20 Boxer engine. Includes 3.48” drive pulley (approximately 9 PSI at factory redline) and G3 helical gear configuration.
• The V-3 features an internal oil reservoir. No connection between the oil pan and the compressor gear case is required; no oil line. Includes a remote fluid drain hose (attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicle.
• Technologically advanced, high-efficiency, 5-Axis machined billet impeller and high-diffusion housing developed in their SAE-J1723-compliant supercharger test cell.
• Stylized airbox and filter housing design allows for additional flow, while retaining the factory cold air ram intake. Quick release fasteners allow for simple access to filter for change/cleaning.
• Integrated air/air charge cooler configuration features all aluminum tube ducting and an oversized cooler core to provide maximum cooling with minimum pressure loss.
• Discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps.
• CNC machined billet mounting bracketry with black anodized finish for attractive and functional "factory-type" appearance and rigidity.
• All necessary belts, pulleys and reusable high-flow air filter.
SHARE THIS
| | | | |

Specifications


Brand: Vortech
Adjustable: No
Includes EMS: Yes
Includes Intercooler: Yes
Installation Hardware Included: Yes
Boost Level: 9psi at redline
Color: Black
Includes Intercooler Piping: Yes

Mfgr. Warranty: 1 Year
Condition: New Product
Return Policy:

RallySport Guarantee - 30 Days


Items that are covered under the RallySport Guarantee offer a 30 day no questions asked return policy.

RallySport Guarantee items may be returned within 30 days of the original invoice date and must include all the original parts and contents for a refund.

The RallySport Guarantee does not apply to products that have been modified, damaged, misused or abused. All returns require an RMA (Return Merchandise Authorization) Number, and freight charges are strictly non-refundable. For more information regarding our freight refund policy, please refer to our return policy page found HERE.
Standard
  INSTALLATION INSTRUCTIONS

PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED


  • Q: CAI Question  JohnyRebel 2 years ago

    Answer

    Greetings, I have a 2013 BRZ with a Perrin CAI, and I would like to ask if: will I be able to use my current CAI or is it necessary to use Vortech's custom CAI? Thank you in advance.


    • A: The Vortech kit is optimized for use with their intake. They dont confirm compatibility with other brand intakes.


      Josh P. 2 years ago
  • Q: Vortech super charger  Ryan T. 3 years ago

    Answer

    If I already have Ecutech cable. Would it be possible to get just a custom flash without having to purchase a new Ecutech cable and flash drive?


    • A: The kit that does not include EMS can be found under this part number: VOR 4TF218-114L


      Josh P. 3 years ago
  • Q: HP gains?  jon_h 3 years ago

    Answer

    So the kit advertises 294 hp in the item description but your dyno shows 230 hp? So 94 hp increase over stock. But only 65 hp on dyno?


    • A: Numbers will vary from dyno to dyno. The 294HP figure is measured at the crank.


      Brady R. 3 years ago
  • Q: Tune for an aftermarket exhaust?   curtis.simmons12334737 4 years ago

    Answer

    Will this kit require a different tune than the one supplied if there is an after market exhaust on the car?


    • A: A custom tune should not be necessary for a catback exhaust and if there are any other exhaust modifications, then we recommend a custom tune for the best results.


      Zach G. 4 years ago
  • Q: Compatibility with the Cosworth stage 1.3 power package.  isaacperez28 4 years ago

    Answer

    Hi, can i install it along with the Cosworth power package stage 1.3?


    • A: Most of the hard parts would be compatible with this kit. However, the filter and EcuTek tune for the 1.3 kit would be obsolete. This setup would require a custom tune.


      guest56ad69792a8d256e198b66b5 4 years ago
