Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
Community Media
User Media for: Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
User Media for: Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
User Media for: Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
User Media for: Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
User Media for: Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)
User Media for: Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel - Subaru Models (inc. 2002-2007 WRX / 2004+ STI)

Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel

Subaru Models (inc. 2002-2007 WRX / 2004+ STI)

Read 1 Reviews | Q&A
Part # TR-TS1046
$2,150.00
Estimated to ship in 16 days
ANY QUESTIONS?

Features & Product Details

RallySport Direct now carries a great selection of turbochargers along with a great variety of performance modifications brought to you by Tomioka Racing.

Here, you are looking at the Tomioka Racing TR GTX3076R turbocharger. This turbocharger allows for exceptionally crisp and strong throttle response paired with faster spooling. it features a lighter billet compressor wheel that is lighter than other turbocharger wheels to promote better airflow.



DETAILS:

  • Ball-bearing type
  • Billet compressor wheel
  • Standard Subaru 5-bolt flange type
  • Compressor wheel inducer: 52mm
  • Compressor wheel exducer: 81mm
  • Turbine wheel Inducer: 59mm
  • Turbine wheel exducer: 53.8mm
  • 1.3 BAR/19psi billet wastegate actuator
  • Turbine housing: 10cm2
  • Max power rating: 550 HP
  • Includes oil pipe
  • Includes water pipe
  • Includes new gaskets
  • Includes hardware kit
  • Specifications

    Brand: Tomioka Racing
    Carb Exempt: [

    Carb Restricted Shipping


    If an Item is CARB exempt it means that it has undergone an engineering evaluation by CARB (California Air Recourses Board) and is shown to not increase vehicle emissions. If an item is CARB Exempt it will have an EO (Executive Order) number associated with it. Even if an item has an EO number it is not guaranteed to be CARB exempt for your vehicle. It is important to confirm that your Year Make and Model fall under the CARB EO number associated with the part. That can be confirmed either by checking the CARB website or the manufacturers website.
    ? ]
    No
    Bearing Type: Ball Bearing
    Cartridge: Garrett
    Exhaust Housing Size: 10cm
    Fitment: OEM Upgrade
    Gaskets Included: Yes
    Inlet Size: OEM
    Oil Line Included: Yes
    Ported Turbine Housing: Yes
    Rated Horsepower: 550hp
    Scroll: Single
    Wastegate: Internal
    Mfgr. Warranty: 1 Years
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    1 Reviews
    5 out of 5 Stars
    5 Stars
    (1)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Stars
    (0)
    Customer Photos and Videos
    Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel ( Part Number: TR-TS1046)
    Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel ( Part Number: TR-TS1046)
    Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel ( Part Number: TR-TS1046)
    Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel ( Part Number: TR-TS1046)
    Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel ( Part Number: TR-TS1046)
    Tomioka Racing TR GTX3076R Turbo w/ Billet Wheel ( Part Number: TR-TS1046)
    1 of 1 people found the following review helpful
    The little turbo that could! 3 years ago
    5out of 5stars
    Biggie

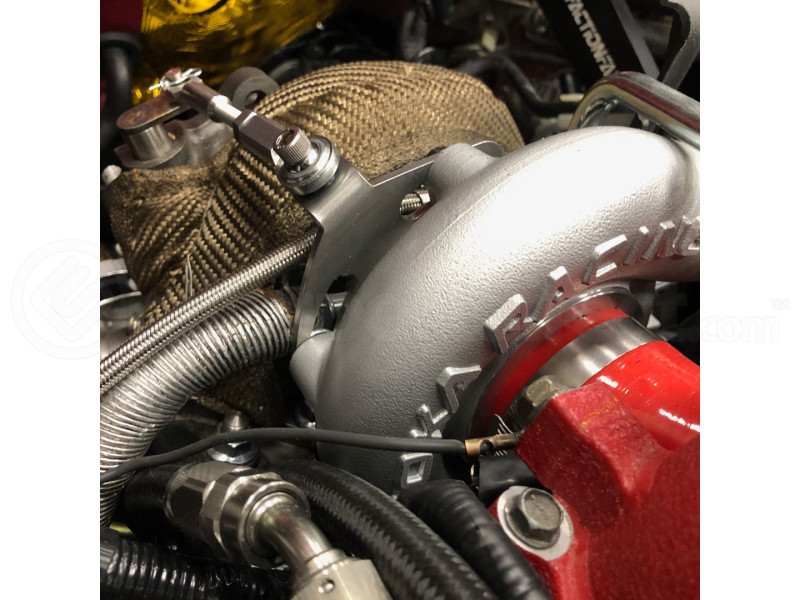

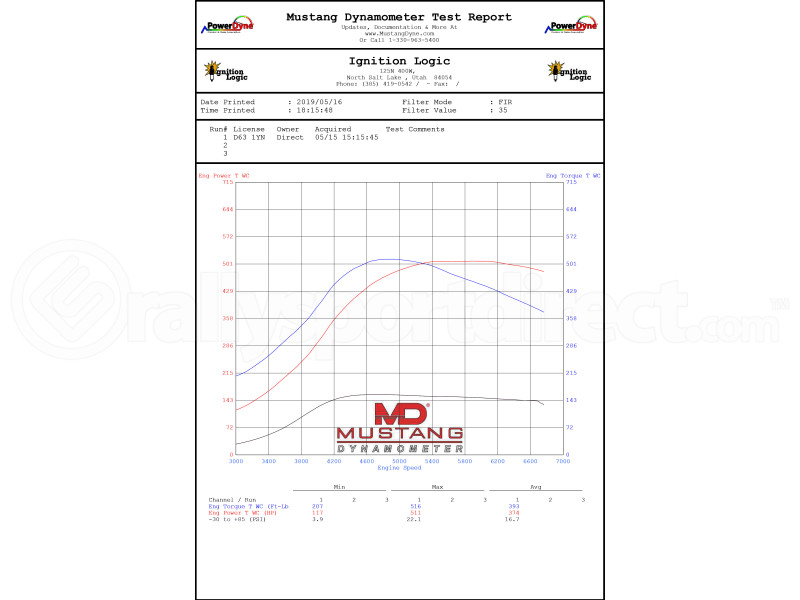

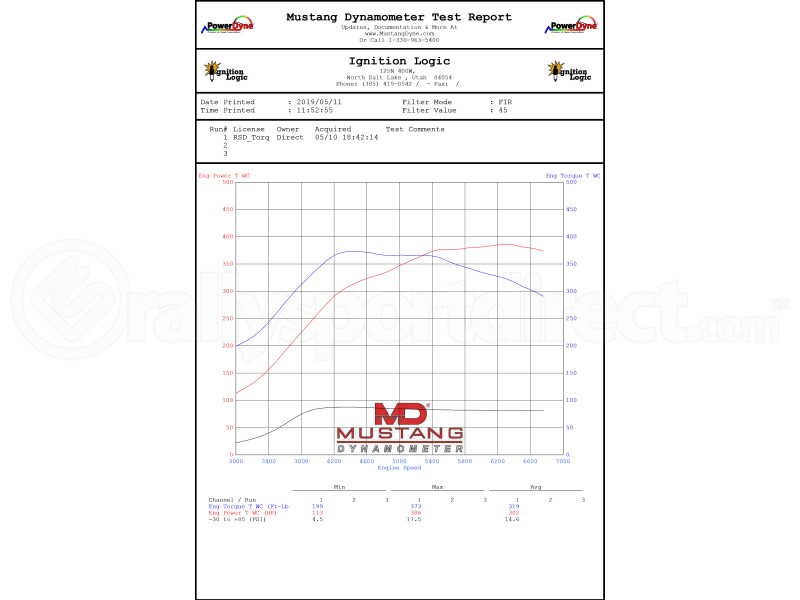

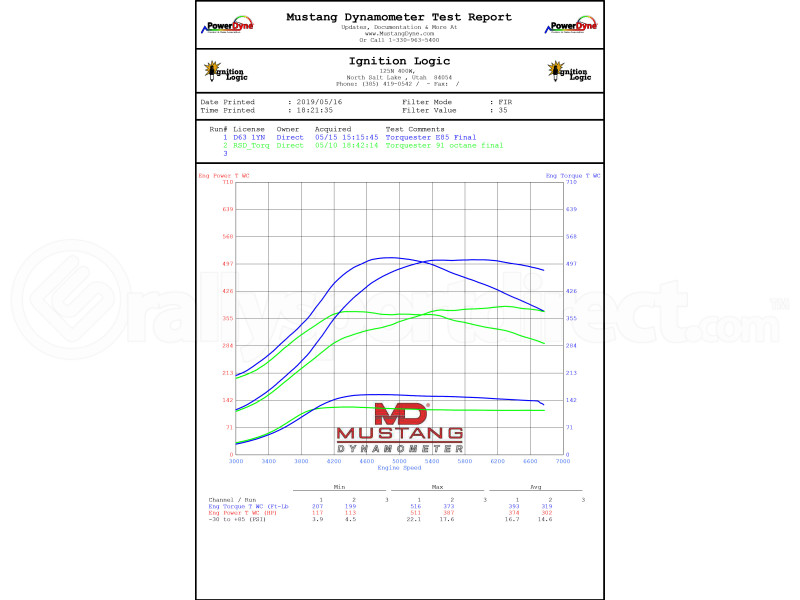

    The TR GTX3076R was a complete surprise performing far beyond my expectations making 511hp and 516 lb/ft Torque. This turbo is a stock location, stock inlet, stock exhaust flange meaning you can still use your current turbo inlet, up pipe, down pipe, and intercooler. So if you already upgraded any of those parts already they still work with this turbo. It made 511hp on E70 at 4200 feet elevation on a mustang dyno with a top mount intercooler on big ol' 29" BFG Mud terrain tires. On lower powered subies people have seen as much as 15hp-20hp loss by running the big tires. At sea level, on true E85, with an FMIC and normal tires, I have little doubt this turbo could make over 550 wheel horsepower. It made 386hp and 373TQ on 91 octane pump gas (no water or meth injection) with the same limitations but also on a high 9.8:1 compression engine. Again if at sea level, on smaller tires and lower compression it would have made well over 400 to the ground.
