Tein Flex Z Coilovers

Subaru Legacy GT 2005-2009

Read 2 Reviews | 6 Q&As
Part # VSS52-C1SS4
$930.00

In stock!
Ships today if ordered in
10 hrs 58 mins
ANY QUESTIONS?

Features & Product Details

RallySport Direct proudly carries the Tein Flex Z coil overs for those of you looking to upgrade to a quality suspension setup without compromising your bank account. These are made ready to install that comes with provided with top hats. These are a good choice if you’re looking to lower your 05-09 Subaru Legacy GT and keep the suspension performance of a coilover setup for that racecar, rally car, overlander or daily driver!

DETAILS:

  • Full-length ride height adjustment feature
  • Twin-tube structure
  • Damping force adjustment system
  • Complete kit with upper mounts exclusively designed for this coil over system with the exception of some models
  • 1-full car kit
  • Ride height adjustment with little or no change in ride quality
  • 16 level linear damping force adjustment system
  • Complete suspension kit of 4 shock absorbers and 4 springs
  •

    In conclusion, the new line of Flex Z coil overs inherits all the features and quality of the Street Flex coil overs, but with an adoption of a new platform allows the price to be considerably lower. These coil overs still maintain the “made in Yokohama” quality. These are ride height adjustable shock absorbers that are fully loaded with Tein’s comprehensive technology, at an affordable price.

    Specifications

    Brand: Tein
    Adjustable: Yes
    Camber Adjustable: Front Only
    Caster Adjustable: No
    Dampening Adjust Type: 16 Way
    Damper Type: Twin Tube
    Drop Height Front: 0.3-3.4in
    Drop Height Front Metric: 8-86mm
    Drop Height Rear: 0.5-4.0in
    Drop Height Rear Metric: 13-102mm
    Height Adjustable: Yes
    Independent Height Adjustable: Yes
    Spring Rate Front: 336lbs/in
    Spring Rate Front Metric: 6Kg/mm
    Spring Rate Rear: 392lbs/in
    Spring Rate Rear Metric: 7Kg/mm
    Top Hats Included: Yes
    Mfgr. Warranty: 1 Year
    Condition: New Product
    Return Policy:
    Standard
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    2 Reviews
    5 out of 5 Stars
    5 Stars
    (2)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Stars
    (0)
    Customer Photos and Videos
    Tein Flex Z Coilovers ( Part Number: VSS52-C1SS4)
    Tein Flex Z Coilovers ( Part Number: VSS52-C1SS4)
    Tein Flex Z Coilovers ( Part Number: VSS52-C1SS4)
    Tein Flex Z Coilovers ( Part Number: VSS52-C1SS4)
    Tein Flex Z Coilovers ( Part Number: VSS52-C1SS4)

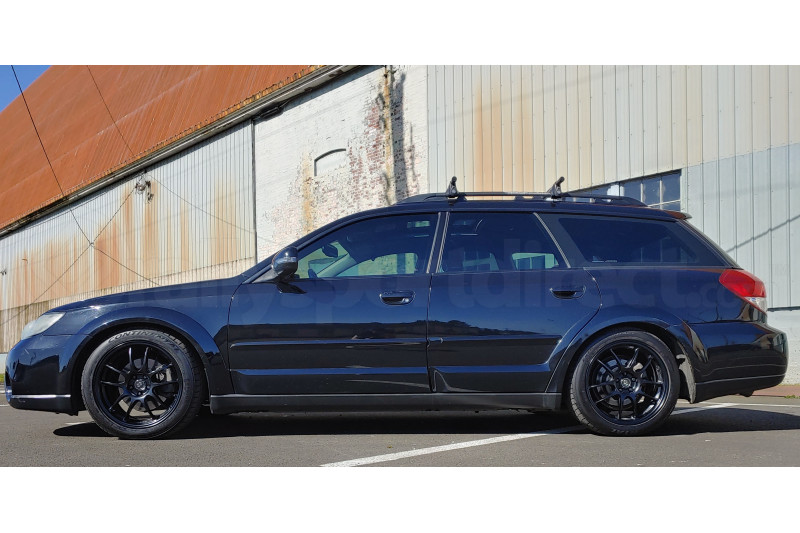

    Flex Z on 08 Outback XT 8 months ago
    5out of 5stars
    08RumbleWagon

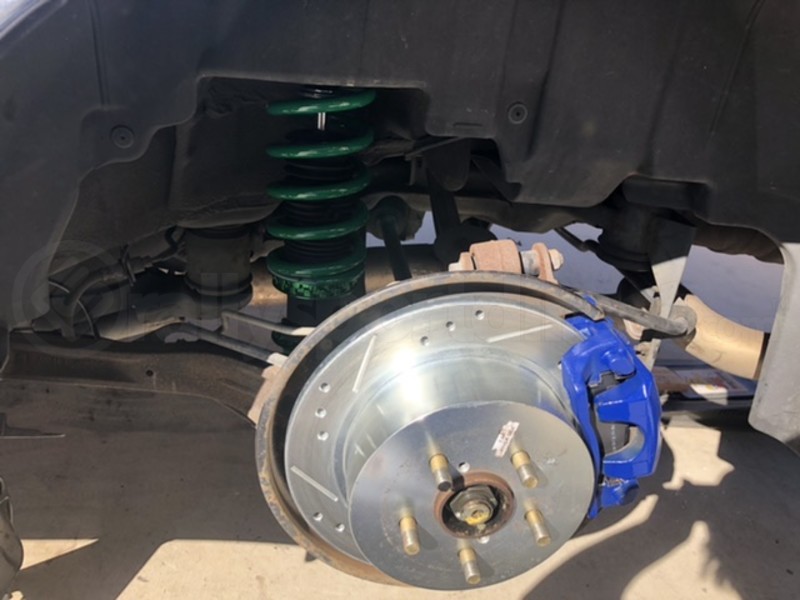

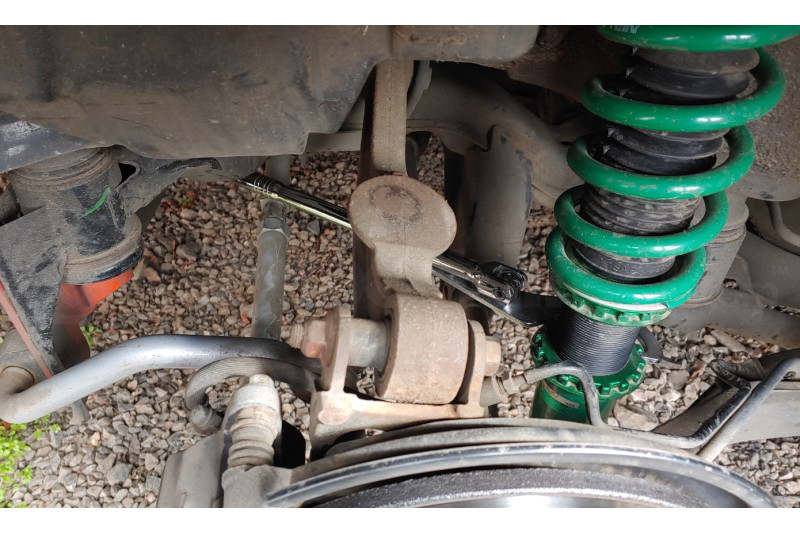

    I will confirm fitment on my 2008 Outback XT. These will require supporting mods for the vehicles geometry to return to spec and be aligned properly. -Whiteline Front roll center bump steer correction kit KCA313 -Whiteline Front and rear sway bar kit BSK014 -Whiteline Rear control arm lower front and rear arm kit KTA124 -AVO Rear sway bar mount S1104M1HT001T Delete rear bump stop or swap with Legacy GT bump stops These coilovers will lower the vehicle drastically. This is why all the supporting mods are necessary. Without them, the vehicle cannot be aligned properly, and will not handle as it should. Install is straight forward. All mounting points are the same as the Legacy GT. Straight out of the box the front needed no adjustments. The rear was raised 3/4" to allow travel from hitting bump stop. Adjusting rear height is tricky due to lock collar setting below rotor. It can be done however, pic is shown of how to fit spanner wrench and breaker bar behind and in between control arms and rotor. With all this said, Tein Flex Z are totally worth it. Yokohama quality at its finest. Superb ride quality. Amazing handling. And the vehicle looks like it should.

    Was this review helpful?
    06 Legacy n/a , Good buy/Love it!!! 11 months ago
    5out of 5stars
    Darkstar

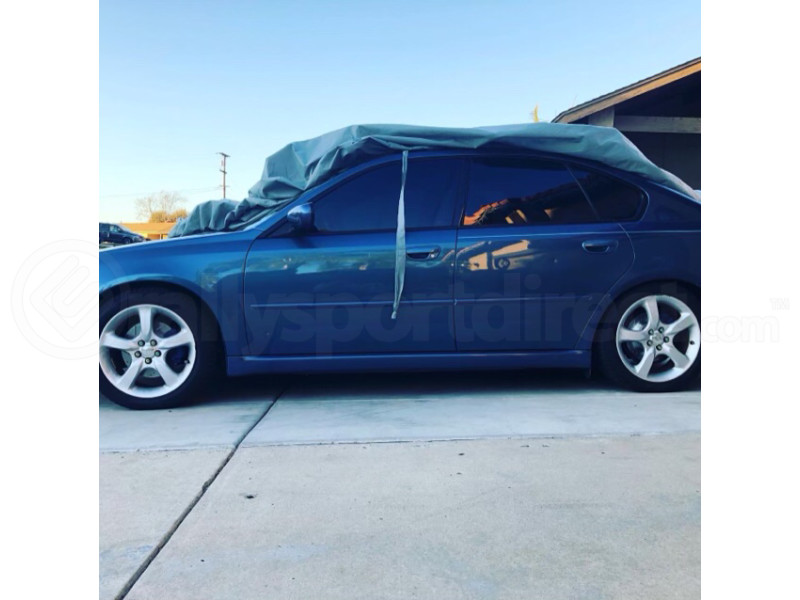

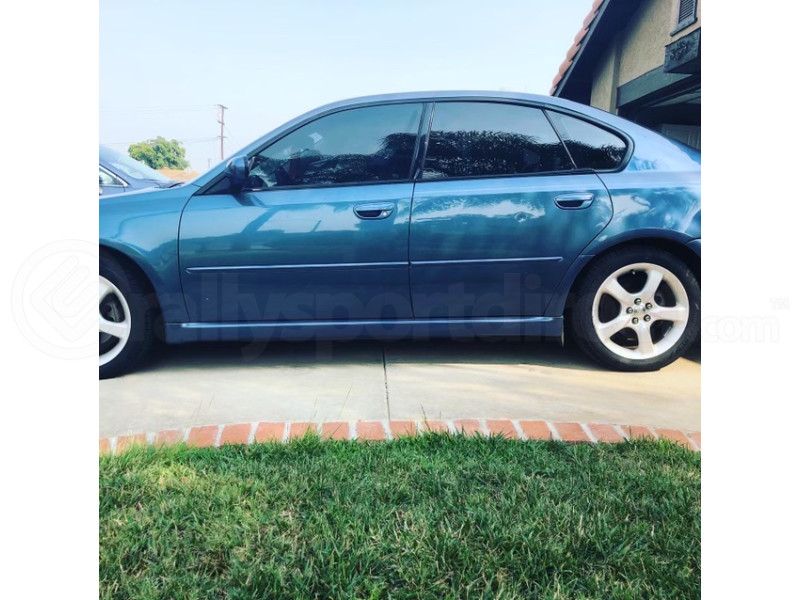

    Bought those that were for the GT model. But after research, they matched for the non-turbo and they fit perfect. The rear at max height are at fender wall, they still have 2” to drop. Had this on a 96 GTR in Japan and loved them. Great buy , no modes needed and the delivery was fast next day during Christmas. Easy install, 2-3 hours if you pre stage tools.

    Was this review helpful?

    QUESTIONS & ANSWERS

    • Q: Fitment  fazzy11 months ago

      I read on tein.com that for the subaru legacy gt BL(sedan) it requires an extension kit. Are you aware of this and if so, what do I do about that then?
      • 0 of 0 people found the following answer helpful

        A:  That only applies to using this kit with their EDFC. They have not confirmed fitment of this coilover kit with an EDFC motor.

        Lane H. @ RallySport Direct 11 months ago

        Was this answer helpful?
    • Q: Camber Adjustment  fazzy1 year ago

      It says the rear is not camber adjustable. I currently have a good amount of rear camber, but when I put these on, is there any other way to get that same camber from the rear? I can buy whatever else is needed.
      • 0 of 0 people found the following answer helpful

        A:  Front only camber adjustment just means the front has top hats with camber adjustment. If you have adjusted the rear camber with camber bolts, etc., you can still use that in the rear with these.

        Lane H. @ RallySport Direct 11 months ago

        Was this answer helpful?
    • Q: Body mounting  Furn2 years ago

      Do these coils use any type of rubber mount to the body or is it a solid mount? Question is for front and rear.
    • Q: teinflex z 05 legacy   RSKIZZY1233 years ago

      DO THEY HAVE A DAMPING ADJUSTMENT
      • 0 of 0 people found the following answer helpful

        A:  This coilover comes with 16-way adjustment.

        Michael N.

        Was this answer helpful?
    • Q: Will these fit my car?  ssergio8923 years ago

      Will these fit a 2006 Subaru Outback 2.5i Limited?
      • 0 of 0 people found the following answer helpful

        A:  Unfortunately, we do not have any confirmed fitment for 2006 Subaru Outback 2.5i models.

        Brady R @ RallySport Direct 3 years ago

        Was this answer helpful?
