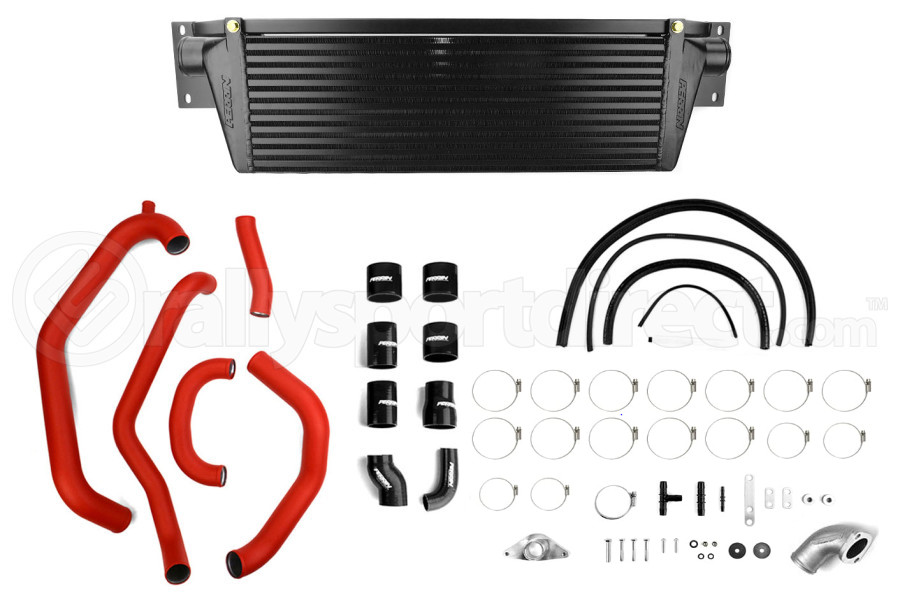

PERRIN Front Mount Intercooler Kit Red Piping/Black Core - Subaru WRX 2008-2014

PERRIN Front Mount Intercooler Kit Red Piping/Black Core

Subaru WRX 2008-2014

PERRIN Front Mount Intercooler Kit Red Piping/Black Core - Subaru WRX 2008-2014
Read 1 Reviews | 5 Q&As
Part # 2 PSP-IP-436-BRB-G

Features & Product Details

When you have made enough power to maximize your factory top-mount intercooler, then it may be time to upgrade to one of PERRIN's Front Mount Intercooler Kits. The Front Mount Intercooler Kit is ideal for those of you who have got upgraded injectors and have enough mods to surpass the factory boost levels. Or even if you have a custom rotated setup then the front mount intercooler will provide the proper amount of cooling needed to cool the air going from the turbocharger then into your engine.

The PERRIN Intercooler Core is a pretty solid design that is a 3/8" bar and plate style that has a 3/8" charge air and ambient air path when compared to the standard 1/4' intercooler sizing. This design is more durable than the tube and fin design and it should be able to withstand most road impediments. This is also a massive core that measures at 28" long X 9.25" tall, and 3.5" deep that has a total volume of 906.5 cubic inches. Additionally, this intercooler core comes with a robust support beam  that is fabricated from boxed steel and has been powder-coated black for extra protection against rust and corrosion.

This particular intercooler finish will come in black for those of you who want the stealth look. And the boost tubes will come in a textured red powder-coated finish to add some flavor to the engine bay. These intercooler pipes have been made with smooth bends to promote better boost flow without too much turbulence or interference. These pipes are 2.25" in diameter, and have been designed to as much clearance on the cold side as possible to work with most aftermarket turbo and intake combinations.

Other additions include an adapter to the turbo, as well as all the necessary silicone couplers, T-bolt clamps and miscellaneous hardware to make for a ready installation.


Kit Package: Yes
Mfgr. Warranty: 5 Years
Condition: New Product
Return Policy:
RallySport Guarantee



1 Reviews
3 out of 5 Stars
5 Stars
4 Stars
3 Stars
2 Stars
1 Stars
Customer Photos and Videos
No user media. You can upload a photo or video of your install by posting a review.
Perrin charge pipes 8 months ago
3out of 5stars

The charge pipes are like trying to put socks on a dam rooster. The bends in there piping are way to close to other things causing rubbing and will eventually rub through no good. With that being said on to the next thing The turbo side constantly blows only at 22 lbs max. Send higher quality clamps these kits are some of the most expensive on the market so you expect the best. The pipes also need more of a flange on them to help prevent the constant issue of blowing charge pipes.The texture on the piping helps but not a guarantee to stay on. Also y'all should make a bracket to go on top of the manifold that will also prevent this from happening. I know for a fact I'm not the only one that has had the same issues. Other then that it does what it's supposed to. Just a little disappointed with the manufacturing of it could be way better. Also the fact I had to jump through hoops to get the right parts they screwed up on and try to say there was no way. I like rally sport but not Perrin so much customer service was not that great either.
Was this review helpful?


  • Q: fitment   dillon9 months ago

    would this fit with the aem cold air intake?
    • 0 of 0 people found the following answer helpful

      A:  We have not personally tested that combination, but we have seen people confirm their AEM intakes do work with FMIC kits, just not specifically confirmed with this Perrin kit.

      Lane H. @ RallySport Direct 3 months ago
      Was this answer helpful?
  • Q: Air intake fitment   12Wrx2 years ago

    Will this work with the cobb tuning sf intake with the air box? Or will the airbox be in the way?
  • Q: Air intake   12Wrx2 years ago

    Will this work with the cobb tuning sf intake with a the Airbox? Or will the airbox be in the way?
    • 0 of 0 people found the following answer helpful

      A:  Most of the time with the FMICs we have we recommend the COBB SF intake or the PERRIN short ram. Both without the airbox.

      Tylo R @ RallySport Direct
      Was this answer helpful?
  • Q: Perrin fmic kit  Anthony2 years ago

    Does this kit have everything i need to go from my stock top mount to this fmic. Does it include all the piping, clamps, and all hardware
