PERRIN Front Mount Intercooler Kit Red Piping/Black Core
Subaru STI 2008-2014
Product Resources
Features & Product Details
If you have out-powered your factory top mount intercooler, then it might be time to upgrade to the PERRIN Front Mount Intercooler Kit. This particular kit features a beautiful black core for those wanting to go with a stealth look. This core is a 3/8" bar and plate style with a 3/8" charge air and ambient air path. The measurements of the core are 28" X 9.25" X 3.5" and will be able to support up to 1000+ HP which is great for those planning on making more power in the future if you currently have basic bolt-ons.
Additionally, this core comes provided with intercooler support beams that are fabricated from boxed steel and these are also powder-coated black. These will bolt right up to the vehicle to ensure great fitment. On the sides of the intercooler core you will find cast end tanks that have a nice taper from the top to bottom which reduces turbulence for better air flow.

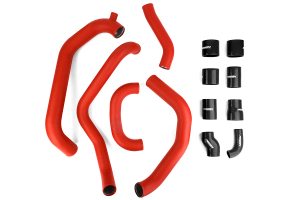

And to promote better flow, aluminum CNC bent tubes are included in a red powder-coated finish to add a little flavor to the engine bay. These pipes are built with large over-sized beaded end to make sure the couplers stay connected under boost, These pipes are 2.25" in diameter which promotes the best flow, and they are bent to provide as much clearance as possible even to clear all turbo and intake combinations.
To make this a complete kit PERRIN provides you with all the required T-bolt clamps, as well as couplers to make for a ready installation.
Specifications
PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED
QUESTIONS & ANSWERS
-
Q: Perrin front mount intercooler kit 2013 sti 13sti2 months ago
Does this kit include the Perrin coolant overflow bottle?
-
-
0 of
0 people found the
following answer helpful
A: Yes, their overflow bottle is included.
Lane H. @ RallySport Direct 2 months ago
-
0 of
0 people found the
following answer helpful
-
Q: Will this fit a RHD sti stev1 year ago
Buying from overseas for a RHD sti, just wondering if it'll be compatible
-
-
0 of
0 people found the
following answer helpful
A: Unfortunately we cannot confirm fitment for the RHD models.
Tylo R @ RallySport Direct
-
0 of
0 people found the
following answer helpful
-
Q: Carb Ty11253 years ago
Is this part carb compliant for those of us in california?
-
-
0 of
0 people found the
following answer helpful
A: According to Perrin, this part is not CARB compliant.
Marcus E. @ RallySport Direct 3 years ago
-
0 of
0 people found the
following answer helpful
-
Q: AEM CAI Compatibility daveyjones3 years ago
Will this fit with the AEM CAI? If not, do you guys happen to know if any FMIC kit will fit with an AEM CAI on a 2013 Subaru STI?
-
-
0 of
0 people found the
following answer helpful
A: The only intake confirmed to fit this FMIC would be the Perrin CAI.
Tyler A. @ RallySport Direct 3 years ago
-
0 of
0 people found the
following answer helpful
-
Q: Typo? cruzcontrol.musubi4 years ago
the description says black piping but the picture shows red piping and there is another kit with the same title but pictured black piping...does this kit have the red piping?
-
-
0 of
0 people found the
following answer helpful
A: We apologize for the error on our end, we will have this updated asap! This will be the kit that has Red Piping/Black Core. Part # PER2 PSP-IP-430-BBB-G will be Black Piping/Black Core.
Brady R @ RallySport Direct 4 years ago
-
0 of
0 people found the
following answer helpful
