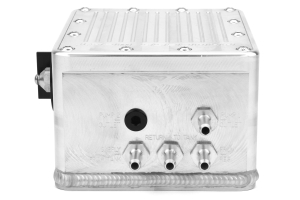

Process West Anti-Surge Fuel System

Subaru WRX/STI 2008-2014

Write a Review | 5 Q&As
Part # PWFS01
$937.59
msrp: $1,171.99

Only 1 left!
Ships today if ordered in
2 hrs 14 mins

Features & Product Details

RallySport Direct proudly carries a great selection of high-performance upgrades and modifications brought to you by Process West.

Here, you are looking at the Process West Anti-Surge Fuel System. This fuel system has been designed to help prevent any fuel starvation issues under high-speed cornering instances where fuel can be shifted to one side of the tank. This system was designed to allow altered fuel systems to contain high fuel flow while employing larger fuel pumps and injectors.



DETAILS:

  • The fuel pump whether by itself or additional pumps are internally mounted to an externally mounted anti-surge vessel
  • Crafted from 6061 aluminum construction
  • This is not an in-tank system, as the vessel is made to be mounted above the transmission cross member
  • Allows altered fuel systems to contain high fuel flow while employing larger fuel pumps and injectors
  • 2.4 Liter Capacity
  • Zero pump noise
  • DeatschWerks DW300 pumps come with check valve built-in
  • Can be upgraded from a single system to a twin system
  • Wiring harness included
  • Completely hidden installed in the engine bay
  • The single pump systems come complete with all the necessary fuel lines and components for a complete installation
  • This includes assembled wiring harnesses, where two wires will need to be soldered for an easy installation
  • NOT compatible with E-85
  •





    Specifications

    Brand: Process West
    Capacity: 2.4l
    Fuel Pump Included: Yes, 1 DW300
    Installation Hardware Included: Yes
    Material: Aluminum
    Mfgr. Warranty: No Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    • Q: Upgrade to dual pump  BillyBarr2 years ago

      Where can the fittings be purchased for upgrading to a second pump? I need both the pump outlet fitting and the power fitting and have tried contacting process west directly twice with no response.
      • 0 of 0 people found the following answer helpful

        A:  To find out the exact fittings that you need for your setup, please contact our customer service.

        Michael N.

        Was this answer helpful?
    • Q: e85  sione7 years ago

      is it the pump only that is making this not compatible with e85? so I can just replace the pump with a e85 pump?
      • 0 of 0 people found the following answer helpful

        A:  Process West does not publish which part of the this system is not compatible with E85.

        Zach G. @ RallySport Direct 7 years ago

        Was this answer helpful?
    • Q: diferent fuel pump  tanahara519617 years ago

      can i use with a different fuel pump?? walbro 450???
      • 0 of 0 people found the following answer helpful

        A:  A different fuel pump can be used with this kit as long as the pump has the same dimensions as the DW300 fuel pump. If you need more flow than approximately 380lph, then you can use the double pump anti-surge system.

        Zach G. @ RallySport Direct 7 years ago

        Was this answer helpful?
    • Q: install question  matt.hamlin83692137 years ago

      the in-tank fuel pump is deleted, right? If so, are you supposed to place a fuel line where the fuel pump was? What do you have to do to the stock fuel canister?
    • Q: difference between double pump  Sean H7 years ago

      whats the advantage of the double pump over this single pump
      • 0 of 0 people found the following answer helpful

        A:  The double pump option is for vehicles that require extra fuel volume and it is only needed if you need more than 320lph.

        Zach G. @ RallySport Direct 7 years ago

        Was this answer helpful?

    This Part Fits

    Subaru Impreza
    2.5 GT Hatchback
    2009 Subaru Impreza 2.5 GT Hatchback
    2010 Subaru Impreza 2.5 GT Hatchback
    2.5 GT Sedan
    2009 Subaru Impreza 2.5 GT Sedan
    2010 Subaru Impreza 2.5 GT Sedan
    WRX Hatchback
    2008 Subaru Impreza WRX Hatchback
    2009 Subaru Impreza WRX Hatchback
    2010 Subaru Impreza WRX Hatchback
    2011 Subaru Impreza WRX Hatchback
    2012 Subaru Impreza WRX Hatchback
    2013 Subaru Impreza WRX Hatchback
    2014 Subaru Impreza WRX Hatchback
    WRX Limited Hatchback
    2010 Subaru Impreza WRX Limited Hatchback
    2011 Subaru Impreza WRX Limited Hatchback
    2012 Subaru Impreza WRX Limited Hatchback
    2013 Subaru Impreza WRX Limited Hatchback
    2014 Subaru Impreza WRX Limited Hatchback
    WRX Limited Sedan
    2010 Subaru Impreza WRX Limited Sedan
    2011 Subaru Impreza WRX Limited Sedan
    2012 Subaru Impreza WRX Limited Sedan
    2013 Subaru Impreza WRX Limited Sedan
    2014 Subaru Impreza WRX Limited Sedan
    WRX Premium Hatchback
    2010 Subaru Impreza WRX Premium Hatchback
    2011 Subaru Impreza WRX Premium Hatchback
    2012 Subaru Impreza WRX Premium Hatchback
    2013 Subaru Impreza WRX Premium Hatchback
    2014 Subaru Impreza WRX Premium Hatchback
    WRX Premium Sedan
    2010 Subaru Impreza WRX Premium Sedan
    2011 Subaru Impreza WRX Premium Sedan
    2012 Subaru Impreza WRX Premium Sedan
    2013 Subaru Impreza WRX Premium Sedan
    2014 Subaru Impreza WRX Premium Sedan
    WRX STI Hatchback
    2008 Subaru Impreza WRX STI Hatchback
    2009 Subaru Impreza WRX STI Hatchback
    2010 Subaru Impreza WRX STI Hatchback
    2011 Subaru Impreza WRX STI Hatchback
    2012 Subaru Impreza WRX STI Hatchback
    2013 Subaru Impreza WRX STI Hatchback
    2014 Subaru Impreza WRX STI Hatchback
    WRX STI Limited Hatchback
    2011 Subaru Impreza WRX STI Limited Hatchback
    2012 Subaru Impreza WRX STI Limited Hatchback
    2013 Subaru Impreza WRX STI Limited Hatchback
    2014 Subaru Impreza WRX STI Limited Hatchback
    WRX STI Limited Sedan
    2011 Subaru Impreza WRX STI Limited Sedan
    2012 Subaru Impreza WRX STI Limited Sedan
    2013 Subaru Impreza WRX STI Limited Sedan
    2014 Subaru Impreza WRX STI Limited Sedan
    WRX STI Sedan
    2011 Subaru Impreza WRX STI Sedan
    2012 Subaru Impreza WRX STI Sedan
    2013 Subaru Impreza WRX STI Sedan
    2014 Subaru Impreza WRX STI Sedan
    WRX STI Special Edition Hatchback
    2010 Subaru Impreza WRX STI Special Edition Hatchback
    WRX Sedan
    2008 Subaru Impreza WRX Sedan
    2009 Subaru Impreza WRX Sedan
    2010 Subaru Impreza WRX Sedan
    2011 Subaru Impreza WRX Sedan
    2012 Subaru Impreza WRX Sedan
    2013 Subaru Impreza WRX Sedan
    2014 Subaru Impreza WRX Sedan
