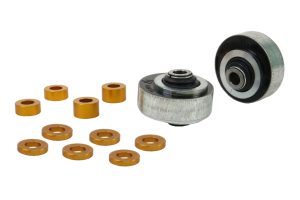

Whiteline Front Control Arm Lower Inner Rear Anti-Lift Caster Bushing - Subaru STI 2011+ / WRX 2015+

Whiteline Front Control Arm Lower Inner Rear Anti-Lift Caster Bushing

Subaru STI 2011+ / WRX 2015+

Whiteline Front Control Arm Lower Inner Rear Anti-Lift Caster Bushing - Subaru STI 2011+ / WRX 2015+
Read 1 Reviews | 5 Q&As
Part # KCA425
On Sale
msrp: $112.50

In stock!

Features & Product Details

RallySport Direct carries a large catalog of quality suspension performance and handling components brought to you by Whiteline.

On this page, you are looking at the Whiteline Front Control Arm Lower Inner Rear Bushing.

Here are the details:

  • Replaces the front control arm rear vertically mounted bushing
  • Features low compliance synthetic elastomer with high performance/low compliance bearings for optimum dynamics alignment
  • Positive static caster gains can also be achieved by the offset orientation of the bearing
  • Allows you to tune geometry from Anti Lift to Anti Dive with a combination of recommended spacers to allow the driver to set up the suspension to the driver preference
  • Specifications

    Brand: Whiteline
    Adjustable: No
    Bearing Type: Spherical Bearing
    Caster Adjusted: Yes
    Material: Aluminum / Polyurethane
    Mfgr. Warranty: 1 Year
    Condition: New Product
    Return Policy:
    RallySport Guarantee



    1 Reviews
    5 out of 5 Stars
    5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars
    Customer Photos and Videos
    No user media. You can upload a photo or video of your install by posting a review.
    0 of 1 people found the following review helpful
    They're Great 3 years ago
    5out of 5stars
    It's taken me a while to review this item, since I wanted to see how they really improved the handling of the car. I have them set up at the neutral setting. The car does feel more planted when taking turns at high speeds, although there's still some bump steer, a lot less than with the stock bushings though. Yes, they are very noisy and when you hit a bump/pot hole/road reflectors... you will hear and feel it. I have 22mm front and rear sway set to the stiffest setting, Tein S. Tech Spring Kit and plenty of whiteline bushings. Install, it wasn't too hard as long as you have access to a press to remove the old bushings and install the new ones. Although the instruction don't explain how to properly line them up, if you have any suspension knowledge, you can figure it out. I did not have my car aligned after the install, but I hear that its a must. I just have not had any issues.
    Was this review helpful?


    • Q: 2011 WRX Fitment  FoolyCooli1 month ago

      It says it'll fit a 2011+ STI, but would it also fit a 2011 WRX? What's the difference between the two that keeps the 2011 WRX off the list of fitment?
      • 0 of 0 people found the following answer helpful

        A:  Whiteline lists this as the 2011+ STI, but only 15+ WRX. I'm not sure why they made that designation, but that is what we were given by Whiteline.

        Lane H. @ RallySport Direct 22 days ago
        Was this answer helpful?
    • Q: Caster & camber change  Nick Q.1 year ago

      These bushings add positive caster by locating the ball joint mount further forward, but by doing so does it also increase or decrease the track width? i ask because my tires are just barely touching my fenders at full compression and i am already running -2.6 degrees of camber so if this will push the ball joint farther outward i will need to run more negative camber for the same clearance which i do not wish to do.
      • 0 of 0 people found the following answer helpful

        A:  I spoke with Whiteline, they said when adjusting caster, it will not impact track width in any way.

        Lane H. @ RallySport Direct 7 months ago
        Was this answer helpful?
    • Q: How noisy  parf9092 years ago

      People say these bushings are "noisy" and "harsh riding". Do they actually spoil a daily driver car? How noisy and harsh are they? I want better steering and handling but not at the expense of something that takes the enjoyment out of driving the car.
      • 0 of 0 people found the following answer helpful

        A:  The NVH of this going onto the car would not be horrible. It would improve the feeling of the car.

        Tylo R @ RallySport Direct
        Was this answer helpful?
    • Q: Number of units inside  Paul3 years ago

      Hi, just wonder, does it comes with 2 units in the kit?
    • Q: Difference  jomartes3 years ago

      What's the difference between this one and the old one (WHI KCA425M)?
      • 0 of 0 people found the following answer helpful

        A:  It's looking like they updated the design just slightly for an easier install and a longer durability.

        Devan M. @ RallySport Direct 3 years ago
        Was this answer helpful?
