IAG EJ Competition Oil Pan Package

RallySport Direct now carries highly sought-after high-performance upgrades and accessories brought to you by IAG Performance.

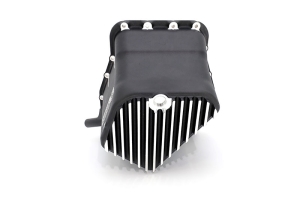

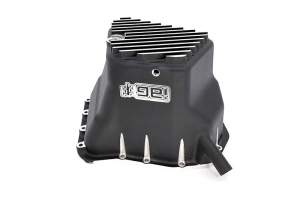

This is the IAG Performance Competition Series Oil Pan Package.  This is a cast-aluminum example that has been CNC-machined to suit a wide range of street and track conditions.  The Competition Series Oil Pan has also been designed to fit a larger variety of popular headers for proper clearance while also having an increased oil capacity up to 30% over OEM.



COMPETITION SERIES OIL PAN DETAILS:

Cast aluminum construction

Designed to fit a large variety of popular headers

Designed with an increased oil capacity of 30% over OEM

Incorporates cooling fins to aid in dissipating heat from the oil as air passes over them

Includes an oil drain plug that is integrated into the lower cooling fins at the absolute bottom of the oil pan to make sure the waste oil is removed

The drain plug uses an OEM crush washer

Also designed with a 1/8" NPT port to accept many popular oil temperature sensors

CNC-machined upper mounting surface for better hardware fitment



COMPETITION SERIES OIL BAFFLE DETAILS:

Stainless steel construction

Designed to limit potential blow-by and to prevent oil starvation during high-RPM driving

Prevents oil from sloshing around under hard acceleration, braking, and cornering

Ideal for track conditions and can be used for street driving

Configured with Viton one-way flapper valves which hold oil in areas closer to the pickup

Combined with louvers in the windage tray that prevents oil from reentering the upper crankcase area and is directed back into the oil pan

Engineered to be removable for easy cleaning and for future upgrades



WINDAGE TRAY DETAILS:

Stainless steel construction

Precision-formed louvers direct oil downwards to help prevent oil that is draining from the cylinder heads in the lower crankcase area from sloshing upwards in the path of the crankcase and connecting rods

Designed to direct oil from the upper crankcase down into the lower crankcase and into the lower oil pan area

Reduces aeration



IAG V2 OIL PICKUP DETAILS:

Direct replacement for the OEM EJ25 oil pickup that is prone to failure

Heavy-gauge steel tubing construction

2X thicker than the OEM design

The flange has been machined from 3/8" stainless steel to mate with the block

Sealed with Viton O-ring

The integrated stainless steel mounting bracket has been designed with (2) mounting points

Designed with a formed bottom with an OEM-style mesh screen for proper filtration

TIG-welded



INCLUDES:

(1) IAG Performance Cast Aluminum Oil Pan with machined flanges and cooling fins

(1) IAG Performance Competition Series Oil Pan Baffle with Viton Valves

(1) IAG Windage Tray

(1) IAG V2 Oil Pickup

(1) Oil pan mounting hardware pack

(1) Oil Pickup Spacer Kit PN: IAG-ENG-2081SP

(1) M20 Zinc plated oil drain plug and OEM style crush washer/gasket

(1) 1/8" NPT zinc plated plug

(1) Oil pan O-ring

(2) Oil pan dipstick Viton OEM sized O-rings

All necessary hardware to complete the installation



INSTALLATION NOTES:

IAG oil pickup spacer is included and required when using the IAG oil pickup



AVAILABLE IN SILVER AND BLACK FINISH OPTIONS
