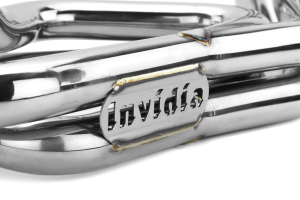

Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
Community Media
User Media for: Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)
User Media for: Invidia Equal Length Big Piping Exhaust Manifold - Subaru Models (inc. 2002-2014 WRX / 2006+ STI)

Invidia Equal Length Big Piping Exhaust Manifold

Subaru Models (inc. 2002-2014 WRX / 2006+ STI)

$1,302.00
msrp: $1,860.00

Estimated to ship in 11 days
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Features & Product Details

RallySport Direct proudly carries a large selection of quality high-performance master-crafted exhaust options brought to you by Invidia.



This is the Invidia Equal Length Big Piping Exhaust Manifold. This type of manifold is ideal for those of you looking to surpass large horsepower figures that would otherwise be limited by the flow capacity of the factory exhaust manifold. When shooting for 600+ horsepower and beyond, two of the main ingredients that seem to be key factors are a larger piping diameter, along with an equal-length design. This with smooth bends as much as possible within the manifold design will allow for an unobstructed flow path for the exhaust to exhale the exhaust gases as proficient as possible for those with moderate bolt-ons.







DETAILS:

  • 304 stainless steel construction
  • Equal-length design
  • Built a larger piping diameter
  • Built-in O2 sensor bung
  • Smooth bends allow for an unobstructed flow path for the exhaust gases to exit
  • Ideal for those of you looking to make big horsepower numbers
  • The equal-length design will eliminate the boxer rumble and will create an aggressive 4-cylinder race-inspired sound
  • Includes new exhaust manifold studs
  •





    NOTE:

  • Made for the stock turbocharger. or aftermarket turbochargers with the stock-style exhaust flange
  • Specifications

    Brand: Invidia
    Installation Hardware Included: Yes
    Manifold Design: Equal Length
    Piping Coating: No
    Piping Flex Joint: No
    Piping Material: 304 Stainless Steel
    Flange Thickness: 12mm
    Piping ID: 39mm / 49mm
    Mfgr. Warranty: 1 year
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    3 Reviews
    5 out of 5 Stars
    5 Stars
    (3)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Stars
    (0)
    Customer Photos and Videos
    Invidia Equal Length Big Piping Exhaust Manifold ( Part Number: HS05SW1HDP)
    Invidia Equal Length Big Piping Exhaust Manifold ( Part Number: HS05SW1HDP)
    3 of 3 people found the following review helpful
    To anyone that is concerned about boost creep when changing exhaust. 10 years ago
    5out of 5stars
    Strycn1n3
    I have seen many people concerned about boost creep when upgrading their exhaust system. I'm very confident that the reason i've seen no boost creep in my system is attributed to these headers. Equal length means more even flow to the turbo and also these headers are designed with the stock cam in mind. They are perfectly oversized to the size of the heads in such a way that they are like a stepped tube header. They may decrease velocity of the exhaust slightly but its made up for in the even delivery to the turbo making them better than similar headers in their class. I always reach the appropriate boost for the map even with a catless TBE. I have these headers + invidia n1 race catless exhaust all the way back running Cobb stage 2 + sf with no problems for about a year now. IMHO these are the best possible headers you can get for the stock turbo regardless of the decreased velocity because you will reach the boost you want all the time with no fluctuations.

    Was this review helpful?
    On Order 10 years ago
    5out of 5stars
    Strycn1n3
    These bad boys are sized perfectly to get a much HP/TQ out of the stock exhaust valve size as possible plus a little more even from slightly ported and larger valves. Can't wait to get them and put them on next week! My goal for now on my MY12 WRX is to gain more low end TQ due to the fact that stockers dont really like to launch as well as they should. Can't ask for a better design for stock or slightly oversized valves.

    Was this review helpful?
    1 of 1 people found the following review helpful
    Does not fit Moroso oil pan 11 years ago
    5out of 5stars
    hot-j
    I bought these headers to be used in conjunction with a aluminum moroso oil pan. They did not fit togeather, so one had to go. I chose the pan over the headers because the additional HP I would gain by using these did not out-weigh the extra reliability of the moroso oil pan. Why the 5 stars then? Because although I couldnt use them, the overall build quality was exellent, and in my opinion the best HP TQ making design out there. Ended going with the Invidia HS02 to fit my pan.

    Was this review helpful?

    QUESTIONS & ANSWERS

    • Q: Headers  JVM1981 1 year ago

      These headers will work on a 02 wrx ?
    • Q: Stock Turbo Fitment   Kturn7162 years ago

      Will a stock turbo bolt up to this mainifold with no problems? I was looking at the pictures and the flanges don't look the same.
    • Q: Fitment on 2013 Sti limited sedan   thewhokidd038543 years ago

      What exactly do I need to purchase for this product to fit properly? Gaskets ? I already have Up pipe, Downpipe and Catback Exhaust (q300). All Invidia .
      • 0 of 0 people found the following answer helpful

        A:  This part will replace your uppipe. Turbo gasket and header gaskets would be suggested.

        Michael N.

        Was this answer helpful?
    • Q: Semi Stock STi  Nick S5 years ago

      I have a 2006 STi with only a cobb down pipe and the accessport. My question is if I will need and supporting mods to run these headers safely.
      • 0 of 0 people found the following answer helpful

        A:  Technically, a tune will not be required for aftermarket headers. But, a tune will get you the most out of the upgrade.

        Brady R @ RallySport Direct 4 years ago

        Was this answer helpful?
    • Q: Subie Rumble (equal Vs. un-equal length)   J.Hick5 years ago

      I've head from multiple sources that equal length headers will get rid of the boxer rumble? Not completely eliminate it but make it more subtle. Trying not to lose that rumble, want to know if I should get an un-equal length or equal length?
      • 1 of 1 people found the following answer helpful

        A:  You will lose the "boxer rumble" with equal length headers but will gain more top end power.

        Luis L. @ RallySport Direct 5 years ago

        Was this answer helpful?

    This Part Fits

    Subaru Impreza
    2.5 GT Hatchback
    2009 Subaru Impreza 2.5 GT Hatchback
    2010 Subaru Impreza 2.5 GT Hatchback
    2.5 GT Sedan
    2009 Subaru Impreza 2.5 GT Sedan
    2010 Subaru Impreza 2.5 GT Sedan
    WRX Hatchback
    2008 Subaru Impreza WRX Hatchback
    2009 Subaru Impreza WRX Hatchback
    2010 Subaru Impreza WRX Hatchback
    2011 Subaru Impreza WRX Hatchback
    2012 Subaru Impreza WRX Hatchback
    2013 Subaru Impreza WRX Hatchback
    2014 Subaru Impreza WRX Hatchback
    WRX Limited Hatchback
    2010 Subaru Impreza WRX Limited Hatchback
    2011 Subaru Impreza WRX Limited Hatchback
    2012 Subaru Impreza WRX Limited Hatchback
    2013 Subaru Impreza WRX Limited Hatchback
    2014 Subaru Impreza WRX Limited Hatchback
    WRX Limited Sedan
    2010 Subaru Impreza WRX Limited Sedan
    2011 Subaru Impreza WRX Limited Sedan
    2012 Subaru Impreza WRX Limited Sedan
    2013 Subaru Impreza WRX Limited Sedan
    2014 Subaru Impreza WRX Limited Sedan
    WRX Premium Hatchback
    2010 Subaru Impreza WRX Premium Hatchback
    2011 Subaru Impreza WRX Premium Hatchback
    2012 Subaru Impreza WRX Premium Hatchback
    2013 Subaru Impreza WRX Premium Hatchback
    2014 Subaru Impreza WRX Premium Hatchback
    WRX Premium Sedan
    2010 Subaru Impreza WRX Premium Sedan
    2011 Subaru Impreza WRX Premium Sedan
    2012 Subaru Impreza WRX Premium Sedan
    2013 Subaru Impreza WRX Premium Sedan
    2014 Subaru Impreza WRX Premium Sedan
    WRX STI
    2006 Subaru Impreza WRX STI
    2007 Subaru Impreza WRX STI
    WRX STI Hatchback
    2008 Subaru Impreza WRX STI Hatchback
    2009 Subaru Impreza WRX STI Hatchback
    2010 Subaru Impreza WRX STI Hatchback
    2011 Subaru Impreza WRX STI Hatchback
    2012 Subaru Impreza WRX STI Hatchback
    2013 Subaru Impreza WRX STI Hatchback
    2014 Subaru Impreza WRX STI Hatchback
    WRX STI Limited
    2007 Subaru Impreza WRX STI Limited
    WRX STI Limited Hatchback
    2011 Subaru Impreza WRX STI Limited Hatchback
    2012 Subaru Impreza WRX STI Limited Hatchback
    2013 Subaru Impreza WRX STI Limited Hatchback
    2014 Subaru Impreza WRX STI Limited Hatchback
    WRX STI Limited Sedan
    2011 Subaru Impreza WRX STI Limited Sedan
    2012 Subaru Impreza WRX STI Limited Sedan
    2013 Subaru Impreza WRX STI Limited Sedan
    2014 Subaru Impreza WRX STI Limited Sedan
    WRX STI Sedan
    2011 Subaru Impreza WRX STI Sedan
    2012 Subaru Impreza WRX STI Sedan
    2013 Subaru Impreza WRX STI Sedan
    2014 Subaru Impreza WRX STI Sedan
    WRX STI Special Edition Hatchback
    2010 Subaru Impreza WRX STI Special Edition Hatchback
    WRX Sedan
    2008 Subaru Impreza WRX Sedan
    2009 Subaru Impreza WRX Sedan
    2010 Subaru Impreza WRX Sedan
    2011 Subaru Impreza WRX Sedan
    2012 Subaru Impreza WRX Sedan
    2013 Subaru Impreza WRX Sedan
    2014 Subaru Impreza WRX Sedan
