Turbosmart Dual Port Blow Off Valve Black

Subaru WRX 2002-2007 / STI 2004+ / Forester XT 2006-2008

Read 7 Reviews | 17 Q&As
Part # TS-0205-1016
$332.09
10%
OFF
msrp: $368.99

In stock!

Features & Product Details

RallySport Direct is proud to provide you with quality aftermarket performance products by Turbosmart.

On this page, you are looking at the Turbosmart Type 5 Dual Port Blow Off Valve.

Here are the details:

  • Stage blow-off valve that can be customized for a variety of different configurations
  • In the standard dual port configuration, the ports are staged so that the bypass valve comes on first, and the atmospheric trumpet comes on second
  • You can convert the dual-port to the supersonic configuration to achieve a full atmospheric function and using a provided blanking plug
  • Billet aluminum construction
  • Can be used as a purely recirculating function by converting the valve into a plumb-back function by using the provided blank to plug the trumpet
  • Can be converted to Mega-Sonic by placing trumpets on both openings
  • Comes with -22 to -10 InHg yellow spring pre-installed
  • Also comes with gasket, replacement oil breather hose as well as fittings making this blow-off valve ready for the installation
  • Product Video

    Specifications

    Brand: Turbosmart
    Adjustable: Yes
    Color: Black
    Design: Piston
    OEM Replacement: Yes
    QTY: 1
    Valve Type: Hybrid or Recirculating
    Includes Gasket(s): Yes
    Mfgr. Warranty: 1 Year
    Condition: New Product
    Return Policy:

    RallySport Guarantee - 30 Days


    Items that are covered under the RallySport Guarantee offer a 30 day no questions asked return policy.

    RallySport Guarantee items may be returned within 30 days of the original invoice date and must include all the original parts and contents for a refund.

    The RallySport Guarantee does not apply to products that have been modified, damaged, misused or abused. All returns require an RMA (Return Merchandise Authorization) Number, and freight charges are strictly non-refundable. For more information regarding our freight refund policy, please refer to our return policy page found HERE.
    Standard
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    7 Reviews
    3.9 out of 5 Stars
    5 Stars
    (4)
    4 Stars
    (1)
    3 Stars
    (0)
    2 Stars
    (1)
    1 Stars
    (1)
    Customer Photos and Videos
    Turbosmart Dual Port Blow Off Valve Black ( Part Number: TS-0205-1016)
    Turbosmart Dual Port Blow Off Valve Black ( Part Number: TS-0205-1016)
    Turbosmart Dual Port Blow Off Valve Black ( Part Number: TS-0205-1016)
    Turbosmart Dual Port Blow Off Valve Black ( Part Number: TS-0205-1016)
    Turbosmart Dual Port Blow Off Valve Black ( Part Number: TS-0205-1016)
    Performance and quality. 1 year ago
    5out of 5stars

    This BOV is absolutely top quality. I have it set to the 50/50 and it sounds so much more stable than the annoying whistle of the HKS that I was replacing. At low boost the re-circulation sounds solid through my intake and at high boost the vent to atmosphere is sharp and crisp.

    Was this review helpful?
    Turbosmart quality is still unmatched. 3 years ago
    5out of 5stars

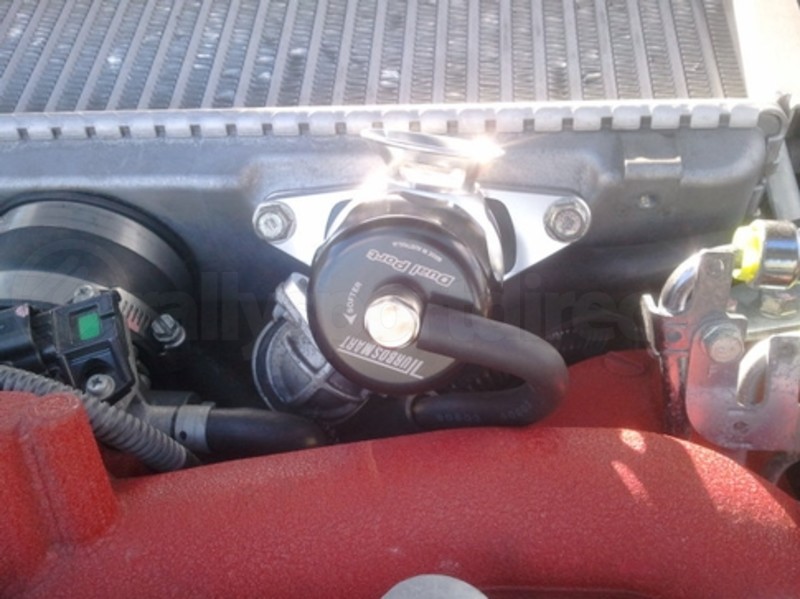

    This is probably my 4th or 5th Turbosmart product and I will continue to keep purchasing them because the quality just does not stop impressing me. The machining and craftsmanship of this BOV make it feel more like a marvel of engineering rather than "just some car-part." It fits nicely on my OE TMIC and comes with hoses to simplify some of the routing. I have mine set to 50/50 and the sound at low RPM gear changes is quiet and discreet coming through my intake. However at high RPMs, the vent to atmosphere sound is crisp and notable without sounding obnoxious or immature.

    Was this review helpful?
    Great quality but ran into some issues 5 years ago
    4out of 5stars

    I love this bov, it is capiable of holding 24psi easy, I just had a few questions, With a 2015 still the black piping on the intercooler is not allowing the bov to fit with the trumpet on, has anyone figured out a way around that? Also I have been having troubles removing the blanking plug once installed, is there a tool used to unscrew it?

    Was this review helpful?
    Awesome valve 5 years ago
    5out of 5stars

    I love this valve. Fit and finish is just like stock, able to hold much more boost and very high quality as well.

    Was this review helpful?
    1 of 2 people found the following review helpful
    2015 STI  5 years ago
    2out of 5stars

    Bought this and thought it would be a good BOV for my STI. I was wrong, it's fairly soft sounding and my COBB short ram intake makes a higher spool and flutter sound than this BOV. I don't hear the BOV with it wide open over my COBB intake. Most likely I will be returning this product. Not worth the price it's listed as.

    Was this review helpful?

    QUESTIONS & ANSWERS

    • Q: 1/2 inch hose fitment   Josesti23 3 months ago

      How do i get the rubber hose to reach when replacing the hard line, it’s too short when I try to connect to both sides
      • 0 of 0 people found the following answer helpful

        A:  There can be a few different reasons for the recirc hose not lining up, please contact our customer service team and we'd be happy to help you out with the installation process.

        Marcus E. @ RallySport Direct 3 months ago

        Was this answer helpful?
    • Q: BOV  Leon4 months ago

      I was just wondering that is the thread size and part of the trumpet?
      • 0 of 0 people found the following answer helpful

        A:  It is TurboSmarts own thread M32x1

        Tylo R @ RallySport Direct

        Was this answer helpful?
    • Q: Dual port bov  Leon4 months ago

      I was just wondering what was the thread size on the trumpet ?
      • 0 of 0 people found the following answer helpful

        A:  It is TurboSmarts own thread M32x1

        Tylo R @ RallySport Direct

        Was this answer helpful?
    • Q: Help with vent to atmosphere   LatinRacer821 year ago

      I don’t see any instructions for full vent to atmosphere. Do i need the turbosmart TS-0205-2015 32mm for the Hose Blanking or do I still connect the hose to the bov? What settings are for full atmosphere and anything else needed?
      • 0 of 0 people found the following answer helpful

        A:  Sounds like you have a few questions, it would be best if you chatted in with one of our representatives.

        Devan M. @ RallySport Direct 1 year ago

        Was this answer helpful?
