IAG Street Series Air Oil Separator Red
Subaru Models (inc. 2008-2014 WRX / 2008+ STI)
Read 1 Reviews | 2 Q&As
Part # IAG-ENG-7151RD
$399.99
msrp: $419.99

In stock! Ships same day

Features & Product Details

RallySport Direct now carries highly sought-after high-performance upgrades and accessories brought to you by IAG Performance.

On this page, you are looking at the IAG Performance Street Series Air/Oil Separator. This unit has been designed to vent crankcase gasses back into the turbo inlet and to prevent buildup in your intake. The design was built around years of working with racing and high-horsepower platforms. It is a patent pending design that features a 1-liter capacity fully heated housing that offers superior breathing.

Here are the details:

TOP:

  • Breather port rotation for installation ease
  • Dual breather port
  • Greater pressure stream oil separator
  • AOS BODY:

  • Large billet aluminum design
  • Approximate 1 liter holding capacity
  • Integrated 3 port billet hose barbs
  • Aluminum body is powder coated in a red finish
  • AOS BOTTOM:

  • Unique baffling controls crankcase pressure
  • Returns oil to the engine
  • No maintenance or manual draining required
  • ADDITIONAL FEATURES:

  • AOS Drain Port can be rotated for ease of installation
  • AOS Fittings are supplied and made of anodized aluminum and feature Viton sealed ORB fittings
  • AOS Hose is built to SAE 20R3 standards and can withstand coolant temperatures of +257°F
  • AOS is heated by coolant to reduce mixture and oil mixing
  • Includes multi-point adjustable mounting bracket
  • Specifications

    Brand: IAG Performance
    Color: Red
    Hoses Included: Yes
    Installation Hardware Included: Yes
    Material: Aluminum
    Mfgr. Warranty: 12 Months / 12k Miles
    Condition: New Product
    Return Policy:

    RallySport Guarantee - 30 Days


    Items that are covered under the RallySport Guarantee offer a 30 day no questions asked return policy.

    RallySport Guarantee items may be returned within 30 days of the original invoice date and must include all the original parts and contents for a refund.

    The RallySport Guarantee does not apply to products that have been modified, damaged, misused or abused. All returns require an RMA (Return Merchandise Authorization) Number, and freight charges are strictly non-refundable. For more information regarding our freight refund policy, please refer to our return policy page found HERE.
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    1 Reviews
    5 out of 5 Stars
    5 Stars
    (1)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Stars
    (0)
    Customer Photos and Videos
    IAG Street Series Air Oil Separator Red ( Part Number: IAG-ENG-7151RD)
    IAG Street Series Air Oil Separator Red ( Part Number: IAG-ENG-7151RD)
    So far so good! 25 days ago
    5out of 5stars

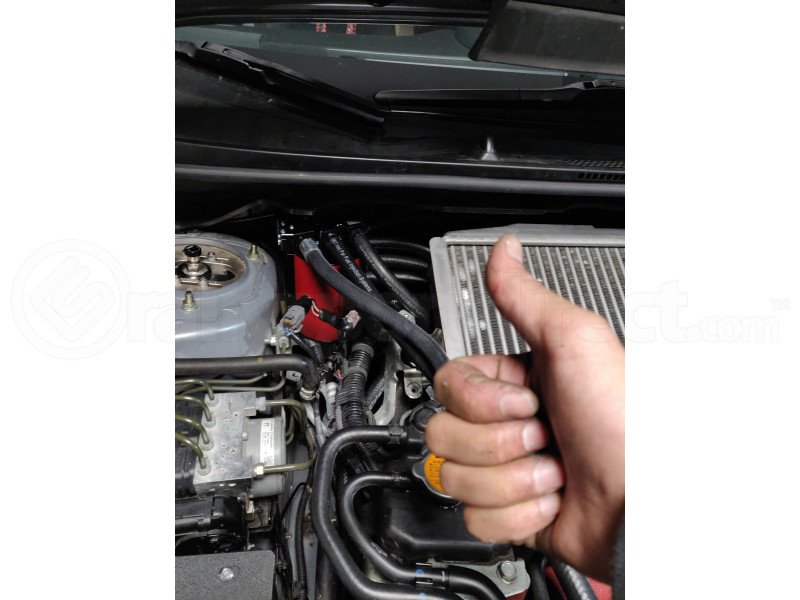

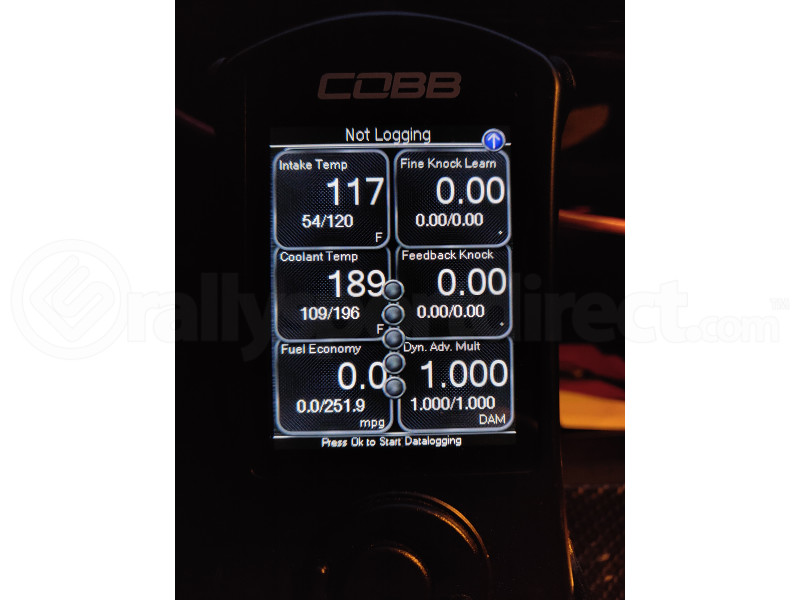

    Before installing this product, I would get random knocks anywhere between 1.8 or 2.4 with normal/ spirited driving. I'm only a day in but 38 mins/13 miles later (pic attached), everything stayed at 0. Maybe it's just me, but I feel like the car runs a little better. First off, this thing is much larger In person (that's what he said.. ) solid build. As soon as you pick it up, you'll know what I'm talking about. This install took me like 2638#[email protected]@763819 hours to install for a couple reasons. IAG provides PDF instructions but if you download the competition instructions, you'll be a little lost as the top piece is different. I ended up finding a video on YouTube of a guy who installed this and I followed his lead for the most part. This isn't a crazy install, however, the clips on the crank case hoses are a pain to get off so that took me a while to do. Also, instead of watching every little step, once you find out which hoses go onto the AOS everything else will begin to make sense as they all vary in size. Also, have a towel with you as you're going to pull the hose on the coolant reservoir and the tube on the turbo inlet and you will lose a little coolant. Lastly, after everything is put back together, don't forget to pull the metal prongs from the old plugs on the rails and pop them into the lose plugs and wrap them up with electrical tape. I forgot to do that at the end and got a "PCV disconnected" code. Thought I broke something until I did that. Immediately the code went away. I also received a call from the dealership saying my check engine light turned on and that I should schedule an appt! Crazy right!? Bottom line, although it's a pain to install, you'll sleep better at night knowing your car is going to run better and longer! I recommend it. I also recommend having a case of beer and have patience. It'll all make sense as you're doing it.

    Was this review helpful?

    QUESTIONS & ANSWERS

    • Q: Heat  Xavier3 months ago

      Does this require you to tap into a coolant hose to heat the oil?
    • Q: Capabilities  Eddieb6 months ago

      Does this system work with both TMIC and FMIC? Or only one?
