ACT Heavy Duty 6-Puck Disc Clutch Kit - Subaru Models (inc. 2002-2005 WRX)
ACT Heavy Duty 6-Puck Disc Clutch Kit - Subaru Models (inc. 2002-2005 WRX)
ACT Heavy Duty 6-Puck Disc Clutch Kit - Subaru Models (inc. 2002-2005 WRX)
ACT Heavy Duty 6-Puck Disc Clutch Kit - Subaru Models (inc. 2002-2005 WRX)
ACT Heavy Duty 6-Puck Disc Clutch Kit - Subaru Models (inc. 2002-2005 WRX)
ACT Heavy Duty 6-Puck Disc Clutch Kit - Subaru Models (inc. 2002-2005 WRX)
ACT Heavy Duty 6-Puck Disc Clutch Kit - Subaru Models (inc. 2002-2005 WRX)
ACT Heavy Duty 6-Puck Disc Clutch Kit - Subaru Models (inc. 2002-2005 WRX)

ACT Heavy Duty 6-Puck Disc Clutch Kit

Subaru Models (inc. 2002-2005 WRX)

$635.00
msrp: $814.00

In stock!
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Features & Product Details

RallySport Direct proudly carries a great selection of quality drivetrain upgrades brought to you by Advanced Clutch Technology.



This is the ACT Heavy-Duty 6-Puck Disc Clutch Kit. This is a great clutch kit for those with vehicles built for high-horsepower street or race use. This kit combines ACT's Heavy-Duty Pressure Plate with their 6-pad disc to have a higher torque rating that surpasses the limits of the OEM clutch.





DETAILS:

  • Designed with an exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life
  • All diaphragms endure a four-stage heat-treating process for unparalleled performance
  • The pressure plate has precision cover stampings for improved rigidity and consistency

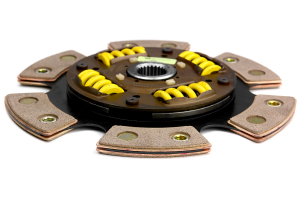

  • 6-pad spring-centered race disc features a spring-center construction to properly clamp torsional vibration and to resist failure under harsh conditions
  • Spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support
  • The spring-centered race disc engagement is harsher but provides faster shifts
  • Monoloc collar
  • Feel: Light to a moderate pedal effort with aggressive engagement
  • Life: Moderate friction life
  • Recommended for high horsepower street or race use
  • Heavy-duty pressure plate type
  • 70% torque capacity over stock
  • Torque capacity rated at 550 ft/lbs
  • Includes release bearing
  • Includes pilot bearing
  • Includes alignment tool
  •

    Specifications

    Brand: ACT
    Alignment Tool Included: Yes
    Clamp Load Increase: 70%
    Crank Torque Capacity: 550 ft/lbs
    Disc Material: Cerametallic
    Disc Style: Sprung Hub
    Disc Type: 6-Puck
    Flywheel Included: No
    Pilot Bearing Included: Yes
    Pressure Plate Style: Pull
    SFI Approved: Yes
    Throwout Bearing Included: Yes
    Wheel Torque Capacity: Not Provided
    Mfgr. Warranty: 1 Year
    Condition: New Product
    Return Policy:
    RallySport Guarantee
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    2 Reviews
    5 out of 5 Stars
    5 Stars
    (2)
    4 Stars
    (0)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Stars
    (0)
    Customer Photos and Videos
    No user media. You can upload a photo or video of your install by posting a review.
    1 of 1 people found the following review helpful
    Installed on Stock 2002 WRX Tranny 4 years ago
    5out of 5stars
    Carnie
    Have had this installed for almost a year with a 360hp WRX. I installed act pro lite lightweight Flywheel as well and that might’ve been a mistake because I have to rev to 2.8k To smoothly get into first. The clutch itself is amazing. It grabs so instantly there were moments when I accidentally slipped my foot off the clutch peddle and damn what a sudden launch. No hesitation. I have it on stock 02 gears which are glass. I do not launch my WRX. After a year or 12k miles I might finally have bad synchros but I believe that’s from old age and not 100% the clutch’s fault. VERDICT: For roughly $50 more than the street performance ACT clutch you get almost a hundred more HP/TQ rating. If I could go back in time I would buy the lower, heavy duty steet disk but ONLY because it would’ve been less stress on my OEM gears. I will be having Tomioka gears I am happy I have the 6-puck. NOTE: It’s a very pretty kit. I was sad to hand the clutch kit to my mechanic because it’s just a beautiful product.

    Was this review helpful?
    Great clutch 6 years ago
    5out of 5stars
    Gosubego
    Second one ive had on the car last one got great use and abuse in a good way. Ultra light flywheel to go with it is definately worth it. Shifts smooth and grabs hard. Made very well. Dont forget the fork like i did when puttin tans back on haha!

    Was this review helpful?

    QUESTIONS & ANSWERS

    • Q: Clutch Fitment  Miki3 years ago

      I have a 03 STi blobeye, it is a jdm spec. It has an ej207 engine and has a 6 speed box, I would like to know if this clutch would fit and which flywheel I will need. Thanks
      • 0 of 0 people found the following answer helpful

        A:  I cannot confirm fitment since this is intended for USDM models, but I believe that this should work.

        Tylo R @ RallySport Direct

        Was this answer helpful?
    • Q: Daily Driver  SubiWRX034 years ago

      Is this a good clutch for a daily driver making 475-525whp ? If not what clutch would you recommend?
      • 0 of 0 people found the following answer helpful

        A:  This is a great option for you if you don't mind the aggressive engagement. There are many people who run this clutch on their daily driver. A smoother engagement option would be ACT SB9-XTSS that you may consider.

        Karsten B. @ RallySport Direct 4 years ago

        Was this answer helpful?
    • Q: fitment   TMac5 years ago

      will this work with https://www.rallysportdirect.com/part/flywheels/act-600175-act-streetlite-flywheel#reviews ( act street light flywheel). I'm sorry I am having trouble figuring out what the description meant.
      • 0 of 0 people found the following answer helpful

        A:  That flywheel is the correct flywheel that you are needing.

        Tyler G.

        Was this answer helpful?
    • Q: flywheel match  Chubaru247 years ago

      I'm driving an 02 wrx about 300hp and plan for 400 in the near future. Used for weekend rally cross and track. Currently have a Fidanza Chromoly flywheel and was wondering if it would go good with this clutch or would would i need to upgrade that as well?
      • 0 of 0 people found the following answer helpful

        A:  If that flywheel is compatible with the stock clutch kit, i don't think there would be any foreseeable issues. Typically clutch kits and flywheels pair better with the same manufacturer however.

        Connor M. @ RallySport Direct 7 years ago

        Was this answer helpful?
