Radium Fuel Hanger (Pumps Not Included)

RallySport Direct carries highly engineered products designed to improve the performance and longevity of your vehicle brought to you by Radium Engineering.

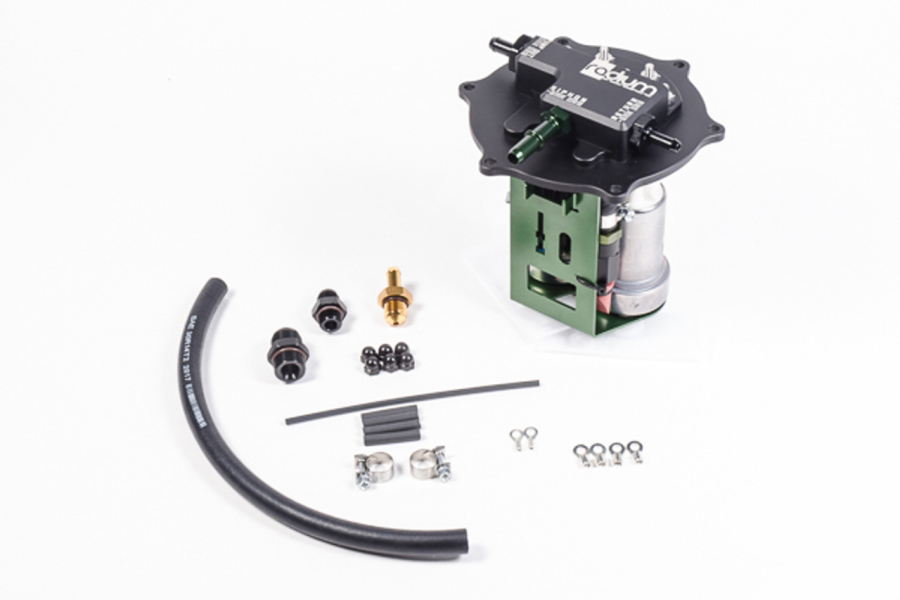

This is the Radium Engineering Fuel Pump Hanger. This hanger has been designed to allow the use of 1 or 2 aftermarket pumps in the stock fuel tank location and will increase the flow volume for those of you who are building a fuel system with larger fuel lines and larger injectors. As a result of countless hours invested in engineering and design, the Radium Engineering Fuel Pump Hanger is a great option for enthusiasts who want a no-nonsense fuel system upgrade that will benefit your high-powered street car or purpose-built track car.





TECHNICAL:

The machined assembly drops in the factory fuel tank replacing the OEM hold-down flange

A single 8AN male pump feed port and 6AN male return port simplify aftermarket -ANhose plumbing

The preassembled adapter fittings are compatible with the OEM fuel lines

Designed with custom stainless electrical studs that easily handle the high current demand that compact bulkhead connectors lack

These serviceable connections are properly sealed and impervious to all standard and exotic fuels

The low-profile design keeps all wiring tucked nicely underneath the OEM cover plate

Nonconductive acorn nuts are provided to prevent any accidental short circuits

Additionally, the high-quality in-tank wiring is insulated with chemically resistant ETFE

Electrical hardware is included for the fuel pumps and the OEM level sender

Includes a venturi jet pump with a new integrated pressure-relief valve to minimize back pressure

All returning fuel from the pressure regulator and crossover hose exit the jet pump keeping the OEM gas tank baffle full for the starvation protection

Single pump applications can reuse the OEM fuel pump controller wiring, but it is recommended to upgrade the OEM wiring as these high-flow fuel pumps draw additional current requiring larger gauge wire





FEATURES:

Anodized aluminum mounting plate

Venturi jet pump with pressure relief valve

8AN male and OEM-compatible pump outlet fittings

8AN male and OEM-compatible FPR inlet fittings

Anodized aluminum dual pump and fuel sender bracket

Electrical hardware for fuel pumps and OEM sender

Fluorosilicnoe duckbill return valve

Submersible rubber fuel hose

Stainless steel hardware and clamps





COMPATIBLE FUEL PUMPS:

AEM 50-1220 E85 pumps





NOTES:

This kit eliminates the OEM hanger's post-fuel pump filter

A low-micron aftermarket fuel filter should've installed downstream to protect the injectors from debris
