FactionFab F-Spec Coilovers

Subaru WRX 2002-2007 / 2004 STI

Read 5 Reviews | 9 Q&As
Part # 1.10173.1
$790.00

In stock!
Ships today if ordered in
5 hrs 36 mins
ANY QUESTIONS?

Features & Product Details

RallySport Direct proudly carries a great selection of high-performance suspension components brought to you by Faction Fab.



Here, you are looking at the Faction Fab F-Spec Street Coilovers. These are ideal for those of you looking to achieve that aggressive lowered look while improving the handling and steering response of your 04-07 Subaru WRX / STI. These have been engineered using the right spring rates so that you can have an efficient suspension package without compromising the overall ride quality.









SPECS:

  • Increased spring rates and shock valving over stock suspension with emphasis on street performance while not jeopardizing ride quality and comfort
  • 32-way adjustable monotube shocks allow for stock-like ride quality on the soft setting while providing enough adjustment to stiffen up the ride for the weekend track days or canyon drives
  • The adjustment allows customers to fine-tune ride quality from soft to stiff to meet their road surface and driving environmental needs
  • Rubber isolated top-hats feature a high durometer rubber mount to reduce deflection while isolating unwanted minor vibrations and road imperfections
  • Includes height-adjustment tools
  • Includes damping adjustment tools
  •







    GENERAL:

  • Japanese steel tube construction using SAE1010 STKM13c
  • Monotube shock design with high-performance mono-tube shock construction allowing for better rider control, fluid life, and thermal fluid stability
  • Synthetic high-performance oil
  • Independent ride-height adjustability separate from spring pre-load allowing the customer to set the ride height without having to worry about shock travel
  • Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
  • Forged 6061 anodized adjustable collars and spring seats for easy adjustment and prolonged cycle life
  • Robotic welded and electroplated lower shock mounts for consistent fit and finish
  • Dust boots and bump stops for shock protection and longevity
  • Individually sold components allowing for replacement or upgrade of components as desired or needed
  • Plastic lower spring seat isolator to aid ride height adjustment and reduce unwanted audible noise
  • Product Video

    Specifications

    Brand: FactionFab
    Adjustable: Yes
    Camber Adjustable: No
    Dampening Adjust Type: 32 Way
    Damper Type: Monotube
    Drop Height Front: 0.4-2.6in
    Drop Height Front Metric: 10-67mm
    Drop Height Rear: 0-2.0in
    Drop Height Rear Metric: 0-51mm
    Height Adjustable: Yes
    Independent Height Adjustable: Yes
    Spring Rate Front: 448lbs/in
    Spring Rate Front Metric: 8Kg/mm
    Spring Rate Rear: 392lbs/in
    Spring Rate Rear Metric: 7Kg/mm
    Top Hats Included: Yes
    Mfgr. Warranty: 1 Year Limited
    Condition: New Product
    Return Policy:
    RallySport Guarantee
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    5 Reviews
    4.8 out of 5 Stars
    5 Stars
    (4)
    4 Stars
    (1)
    3 Stars
    (0)
    2 Stars
    (0)
    1 Stars
    (0)

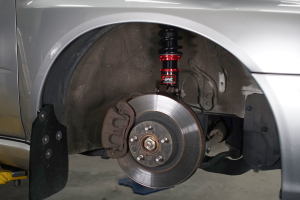

    Customer Photos and Videos
    FactionFab F-Spec Coilovers ( Part Number: 1.10173.1)
    FactionFab F-Spec Coilovers ( Part Number: 1.10173.1)
    FactionFab F-Spec Coilovers ( Part Number: 1.10173.1)
    FactionFab F-Spec Coilovers ( Part Number: 1.10173.1)
    Fits on JDM Sti 2004 1 year ago
    4out of 5stars
    IG
    Got this coil over and was impressed by its overall quality and performance. It fit on my JDM2004 Sti and replaced by old coilovers, The noise from this system is minimal to none depending on how rough the road conditions are and your speed. It was easy to install and mine came preloaded already but I still slackened the collar nuts and rechecked the position. If this unit gives me 100k this will be the best bang for buck system.

    Was this review helpful?
    Perfect street coilovers 1 year ago
    5out of 5stars
    e_navarre
    I was looking for a coilover setup that won’t break the bank but will still deliver on ride quality and handling. The fspecs are perfect for street driving and handle bumps and potholes better than my previous lowering springs due to the 32 way adjustable dampening, and I got the car lower. Would definitely recommend for anyone looking for an entry level coilover.

    Was this review helpful?
    Great budget coilovers 2 years ago
    5out of 5stars
    Bugeye Bucknasty
    I was looking for something to stiffen up my ride in the corners and reduce body roll without giving up to much comfort in the daily drivability. I purchased these on a budget and couldn’t be happier. Out in the canyons or the mountains these coilovers do wonderful. Before installation I got my coilovers preloaded and set to lengths that dropped the front by 1.5 inches and the rear by an 1 inch. Looked great for just stock wheels and I know will look better when I put my summer wheels back on. Great handling, great comfort, easy installation . Couldn’t be happier.

    Was this review helpful?
    Good for the money 2 years ago
    5out of 5stars
    djkichizo
    First coils I bought and changed and I’m pretty dang happy. Ride is as how it’s described a bit stiffer then stock will not beat you up. My grandpa road in my car and thought it was great. Wife thinks it feels better then stock. For the money I think it’s a great option. My 03 wagon is a daily so it will most likely not see a track day, I don’t want camber wear, I just wanted something that would improve driving experience of my wrx without going over $ 1,300. Install will be dependent on your bolts and tools. The guild is very helpful but if you off wheel set up that is over then stock you will need to do some adjustments but the install guild takes a lot of guess work out off the process. Definitely use Pb blaster for the main bolts, it makes it easier also take the calipers off for the main bolts as well so good idea to do brake pads and rotors if need. Follow the preset guild. 4mm of preset. For those that is their first time doing coils expect 5-6 hours of install time. Don’t rush it. Make sure you follow the height limitations on the guild or you will damage fenders and the coils. Remember the guild is based on stock wheel set up so definitely start off with a middle ground to avoid dropping the fenders on to the wheels and adjust from there. (Did that on the rear but ended up rolling them after) Took maybe 15-20 miles for it to break in I’m guessing there is noises from spring or any sounds from the coils now. Probably have few 100 miles on them by now in Hawaii so it’s been on some rough roads. Overall great for the money and my application. If you want something with more potential go with the FR spec it comes with a camber plate and stiffer springs and different hydroelectric settings. It’s only a few $100s more, maybe even get swift springs as a upgrade. Only saying that because of what I heard in reviews. Definitely do your research and make a list of things you want to achieve with your coils. You don’t need the best racing coils to have a great driving experience. Build quality is nice. (You get what you pay for) Ride and handling is as advertised, handling is noticeably better and accurate. Price is great, fit is good. Overall it is a 5star for my applications Things I wanted out of this coilover 1. Better handling 2. Stiffer not to stiff 3. Lower 4. Not go over $1,300 total including shipping to Hawaii. 5. Look great

    Was this review helpful?
    2 of 2 people found the following review helpful
    Best Daily Coilovers! 2 years ago
    5out of 5stars
    Dustin G.
    I have had a few brands of coilovers throughout the ownership of my 2003 WRX and I can honestly say it feels as if the spring rates and valving not only perfectly match each other but also match the car. With the rubber isolated top hats I cannot hear any increase in road noise which is unheard of with aftermarket non rubber top hats. The ride is stiffer than your factory suspension but doesn't beat you up. As far as performance, you immediately have more precise turn in and much less body roll over stock suspension. It's also very nice to be able to lower your car wherever you want without messing with spring preload. 10/10 would recommend.

    Was this review helpful?

    QUESTIONS & ANSWERS

    • Q: 02 Impreza TS  Oz2 months ago

      Will this fit my 2002 Subaru Impreza TS?
      • 0 of 0 people found the following answer helpful

        A:  Faction Fab has not confirmed fitment, and neither have we. But Faction Fab says these should fit without modification on the 2.5 Impreza's.

        Lane H. @ RallySport Direct 2 months ago

        Was this answer helpful?
    • Q: Faction fab coilovers  07 GRP TR8 months ago

      Can they be used with group N strut tops?
      • 0 of 0 people found the following answer helpful

        A:  They are not compatible. These are rubber isolated like stock, so the Group N units won't be a huge benefit.

        Lane H. @ RallySport Direct 6 months ago

        Was this answer helpful?
    • Q: 2002 JDM forester crosssport (SG5)  Eli 10 months ago

      I was wondering if these WRX coils would fit on my JDM 2002 forester crosssport?
      • 0 of 0 people found the following answer helpful

        A:  We cant guarantee it will, but many people use 02-07 WRX suspension on that generation Forester with no issues. Hope this helps.

        Rick C. @ RallySport Direct 10 months ago

        Was this answer helpful?
    • Q: FactionFab F-Spec Coilovers Fitment  Trailer Park Ninja1 year ago

      Hey Rally, Could you let me know if there is any reason why the FactionFab F-Spec Coilovers Part # 1.10173.1 would not fit on a 2005 9-2x aero? Thanks, James
      • 0 of 0 people found the following answer helpful

        A:  Hi, there is a good chance these will fit, but they may require minor modification as we cannot confirm fitment.

        Travis D. @ RallySport Direct

        Was this answer helpful?
      • 1 of 1 people found the following answer helpful

        A:  We have not test fitted it on the Saabaru, but it should fit without modification!

        Gregan @ FactionFab 1 year ago

        Was this answer helpful?
    • Q: Fitment - 2007 Subaru Impreza 2.5i  dantocz713391 year ago

      2007 Subaru Impreza 2.5i Will it fit? I read online that fitment for wrx and 2.5i are the same for 04-07 models. But it doesn't say here so just want to make sure. Thanks!
      • 0 of 0 people found the following answer helpful

        A:  We have not test fitted these on any of the N/A 2.5i models and can't confirm, however we believe they should fit without modification.

        Gregan @ FactionFab 1 year ago

        Was this answer helpful?
