GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020
GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020
GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020
GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020
GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020
GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020

GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping

Subaru WRX 2015 - 2020

GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020
GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020 GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020 GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020 GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020
+2
GrimmSpeed Front Mount Intercooler Kit Black Core w/ Red Piping - Subaru WRX 2015 - 2020
Write a Review | 2 Q&As
Part # 090255We price match! Call 888-45RALLY or Chat!
Was: $1,679.00
$1,477.52
You save:
12%
($201.48)

Only 3 left!
Ships today if ordered in
7 hrs 6 mins
Qualifies for
free shipping!
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
GrimmSpeedAuthorized
Dealer

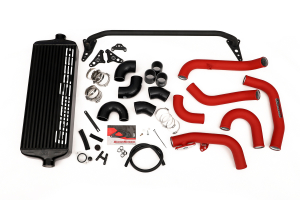

INCLUDES:

GrimmSpeed Front Mount Intercooler Core Coated Black QTY: 1
GrimmSpeed Front Mount Intercooler Pipe Kit Red QTY: 1

Product Resources

Features & Product Details

RallySport Direct proudly carries a great selection of quality aftermarket performance products brought to you by GrimmSpeed.



This is the GrimmSpeed Front Mount Intercooler Kit. This is the latest offering from GrimmSpeed and has been designed with a great balance of low-pressure drop and high-temperature rejection to provide optimal performance for a turbocharged engine. This intercooler kit is very beneficial for those of you with minimal to moderate modifications as those modifications would surpass the cooling limits of your factory top mount intercooler.





INTERCOOLER CORE DETAILS:

  • Black core finish option
  • 27" x 11" x 4" Cross Flow Core
  • Durable bar and plate construction that has a perfect balance of pressure drop and heat rejection
  • Cast aluminum end tanks - Designed for equal flow distribution and minimum pressure drop
  • Steel bolt-on mounting brackets - Robust mounting solution to minimize movement and to maximize adjustability
  • No permanent vehicle modification -  Only two tiny ribs need to be removed from the OEM undertray and a few simple cuts to the splash guard
  • Compatible with the factory or GrimmSpeed Intake with the removal of the factory snorkel
  • Pressure tested, cleaned, sealed, and guaranteed to work prior to delivery
  • No tune required - No change in maximum boost or spool time
  • Welded and inspected by hand in Minneapolis, MN for consistency and optimal quality control
  • Includes pre-applied GrimmSpeed sticker

    •





    INTERCOOLER PIPING DETAILS:

  • Red powder-coated finish option
  • Thick .090 wall 2.5" diameter 6061 aluminum piping construction
  • Bead rolled and CNC mandrel-bent on a large radius for max flow
  • Lightweight and heat dispersant
  • Precision pipe routing - Retains factory components and avoids unnecessary trimming
  • Retains the factory fog light mounting
  • 5-ply silicone couplers - Custom-molded and reinforced to withstand demanding environments
  • Breeze Hi-Torque Liner Clamps - Stainless steel for lasting durability and grip with an integrated liner to prevent the damage to the silicone
  • Durable powder-coated finish keeps pipes protected against corrosion while keeping a great look
  • OEM bypass valve location - Eases installation and allows for use of most aftermarket BPVs

    •





    NOTE:

  • Bumper Bar (GRM090261) is SOLD SEPARATELY.

    •







    Specifications

    Brand: GrimmSpeed
    Color: Black
    Core Depth: 4.00 in
    Core End Tank Material: Aluminum
    Core Height: 11.00 in
    Core Type: Bar and Plate
    Core Width: 27.00 in
    Includes New Clamps: Yes
    Installation Hardware Included: Yes
    Intercooler Piping Included: Yes
    Piping Color: Red
    Piping Material: Aluminum
    Mfgr. Warranty: Lifetime
    Condition: New Product
    Return Policy:
    Standard
